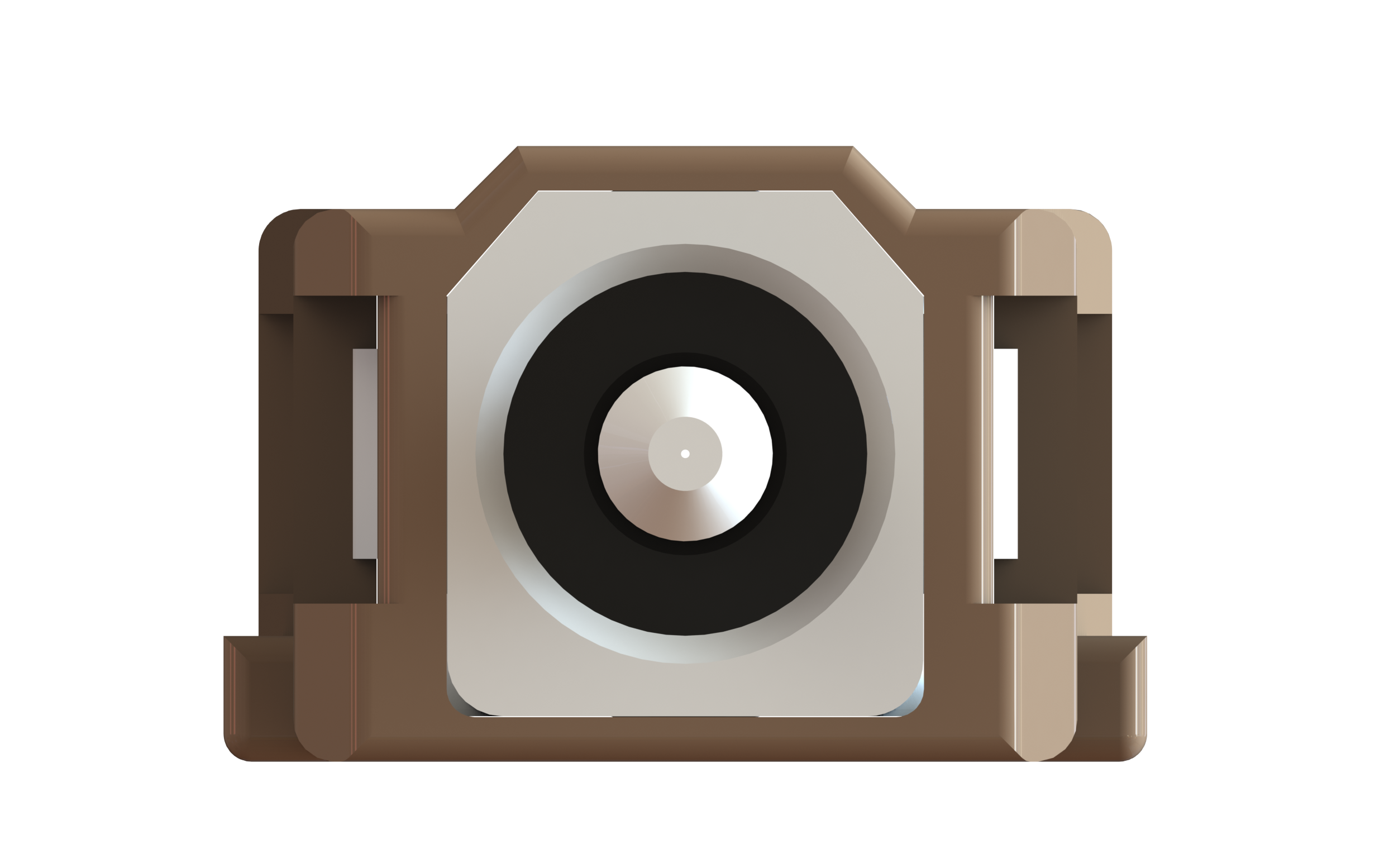

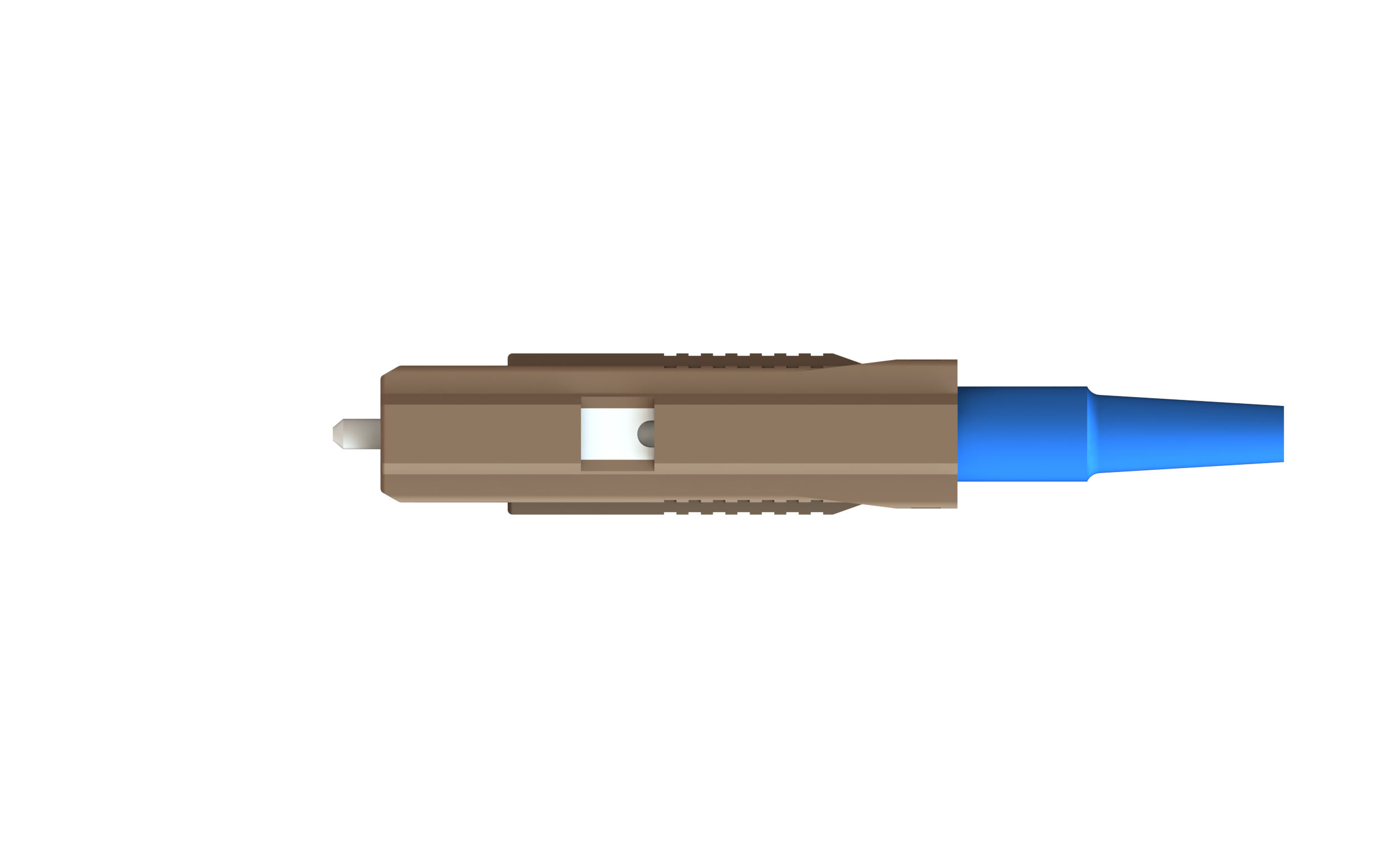

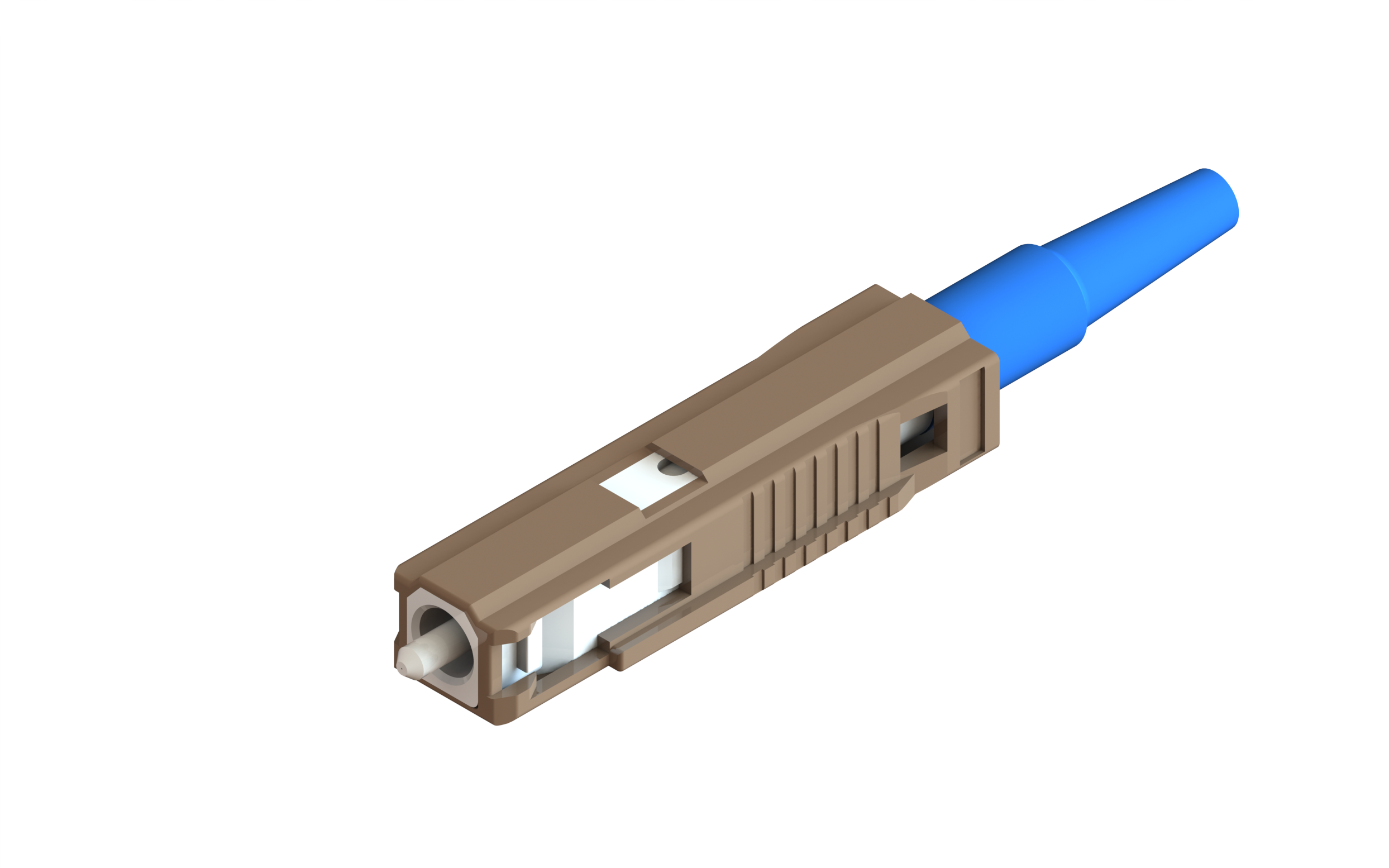

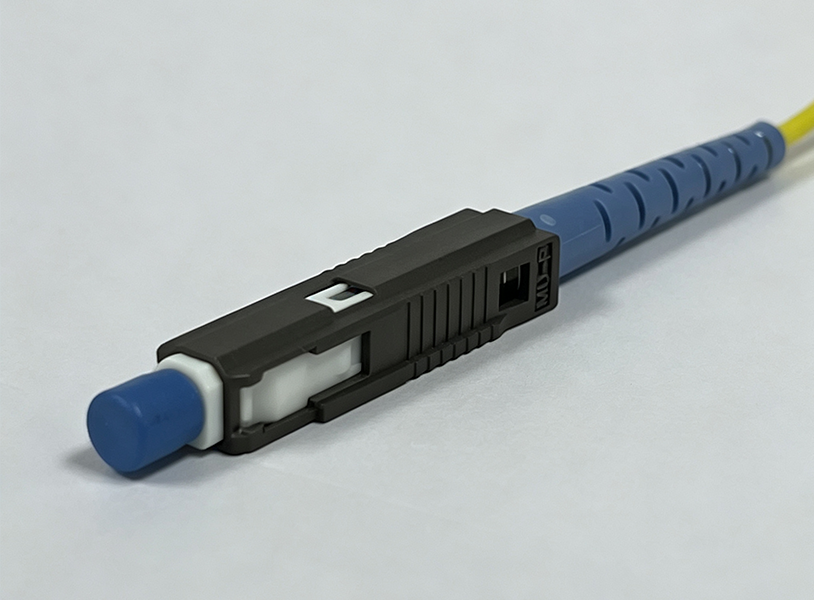

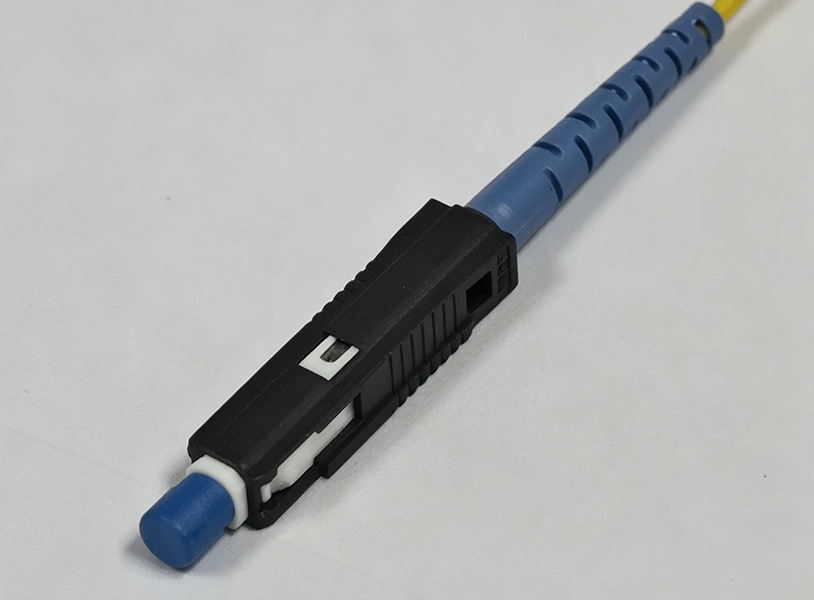

MU Simplex Connector

MU Simplex Connectors are small form factor (SFF) connectors approximately half the size of standard SC Type Simplex Connectors. Perfect for back panel and other high-density applications, our MU Simplex Connectors are available with a zirconia split-sleeve.

Housing Color

Boot Color

MU Simplex Connector

Product Features


 Small form factor (SFF) connectors
 Approximately half the size of standard SC Type Simplex Connectors
Suitable for high-density applications


Fiber Type：SM（9/125），MM（50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.3dB or lower
Return Loss：UPC (55dB or more) ,APC（65dB or more）
Reference Standard：IEC-61754-6-1997 and IEC-61755-3-2

Select the product specifications here

  • 01

    Sort

Model List

Series ModeProduct TypeCable Spec Housing ColorFerrule Type & lD ConcentricityBoot TypeBoot ColorDust Cap Type
Shrink Tube Type
MU
MU ConnectorSSSingle Mode SimplexPPre Assy09φ0.9mm CableBRBrownF50125.0um050.5umRBRubber Boot(0.9mm Cable)BLBlueTT Dust CapNNo Tube


MSMulti Mode Simplex

20φ2.0mm Cable

F55125.5um(SM Standard)101.0umBCBellcore Boot(2.0mm Cable)VTViolet













F60126.0um404.0um

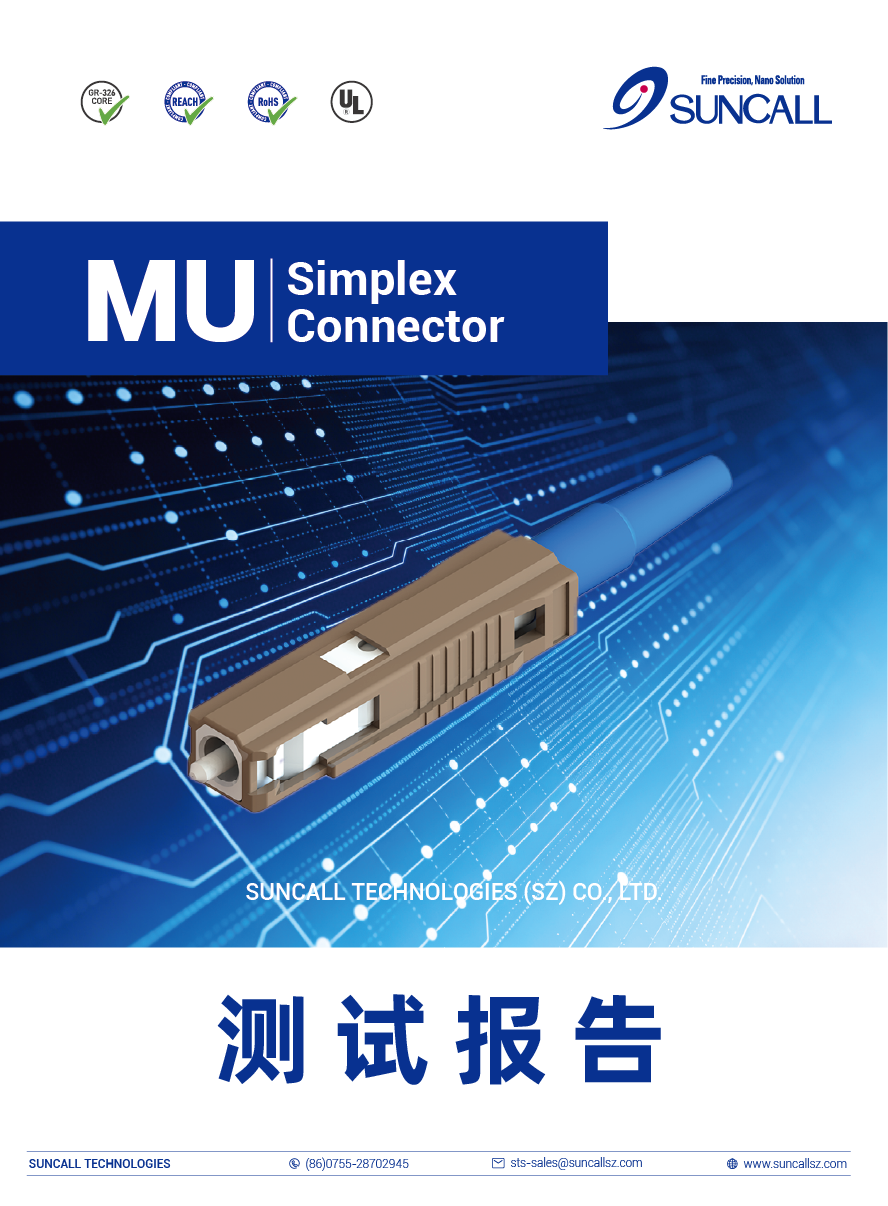

  • MU Simplex Connector 2.0mm

    2026.03.05
    pdf

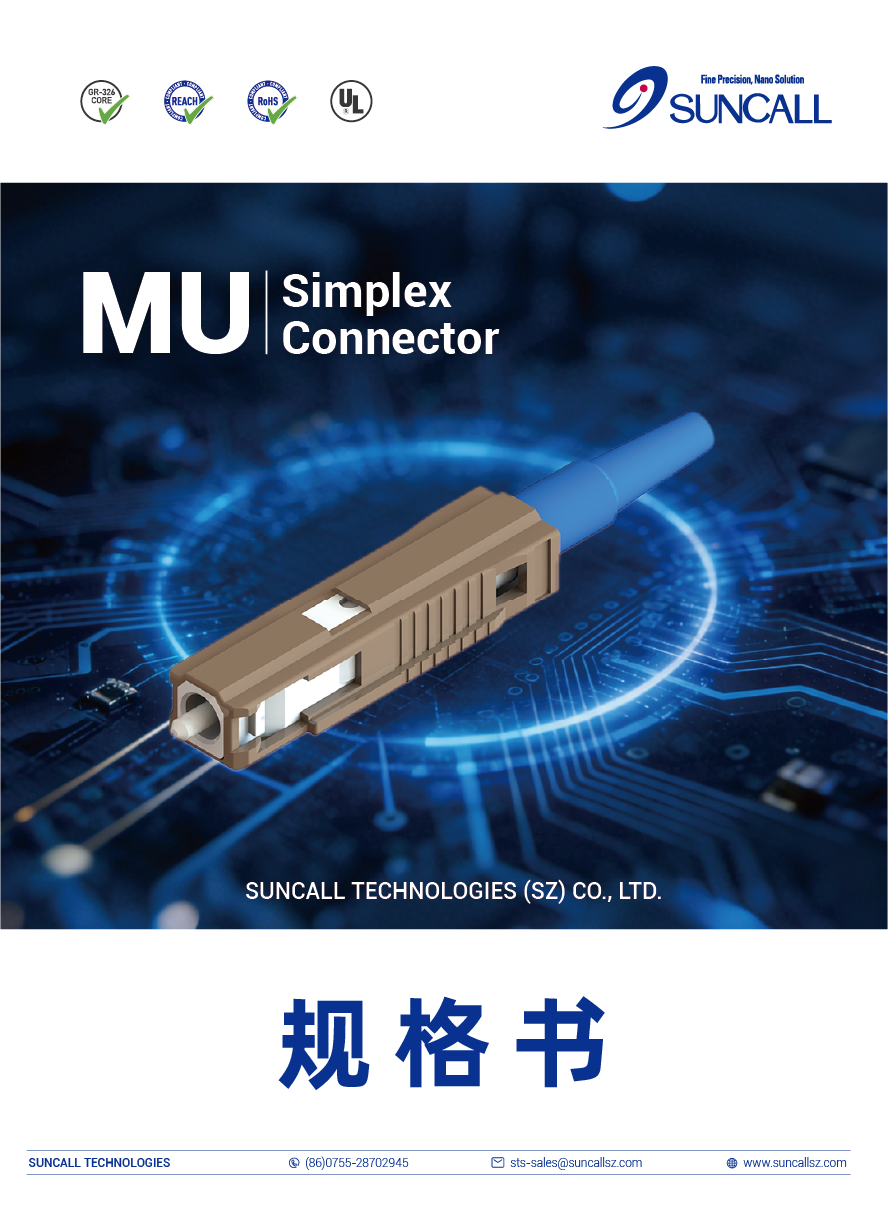

  • MU Simplex Connector 0.9mm

    2026.03.05
    pdf

  • MU Simplex Connector 2.0mm

    2026.03.09
    pdf

  • MU Simplex Connector 0.9mm

    2026.03.09
    pdf

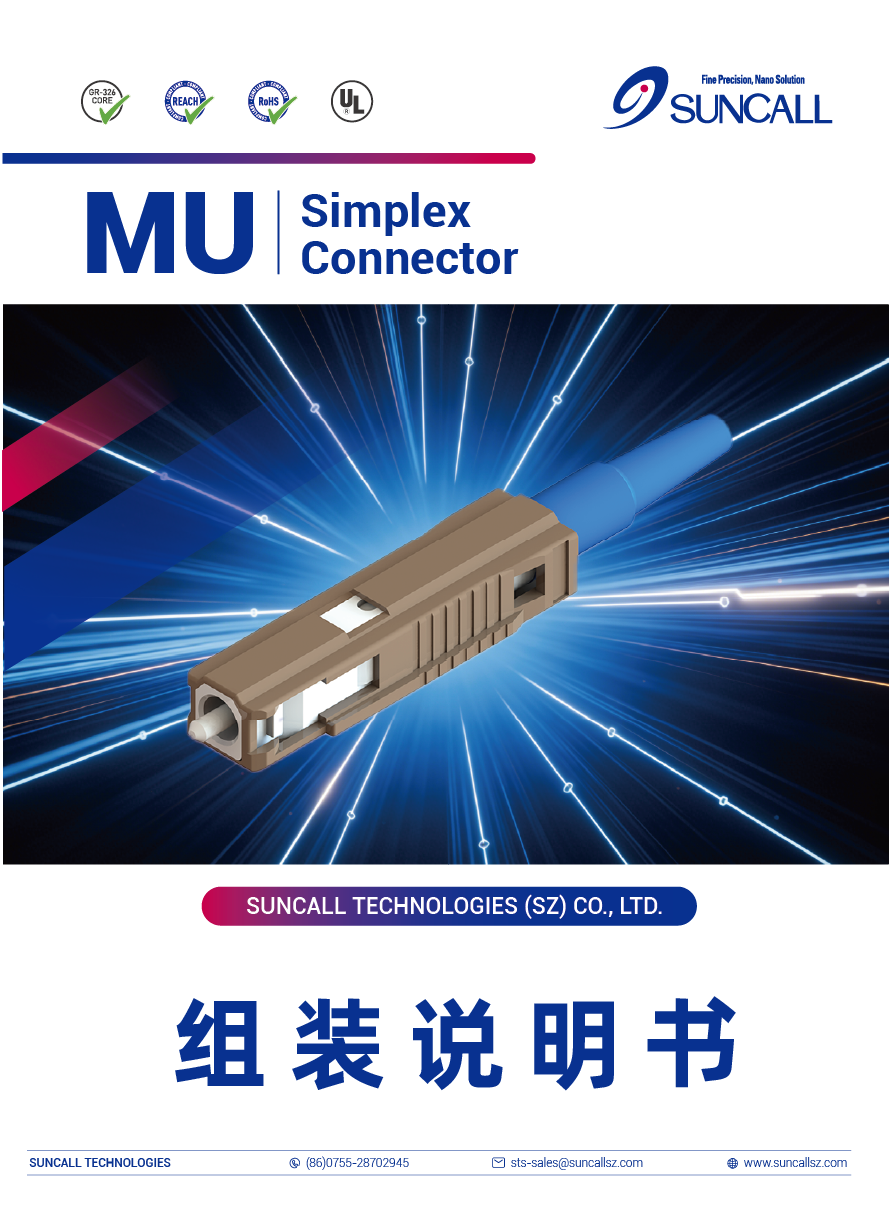

  • MU Simplex Connector 2.0mm SM

    2026.03.06
    pdf

  • MU Simplex Connector 0.9mm

    2026.03.06
    pdf

  • MU Simplex Connector 0.9mm SM

    2026.03.06
    pdf
