LC Internal Shutter Slimpack Cluster Adapter

The LC Internal Shutter Slimpack Cluster Adapters have been updated with a reduced height of 9.6 mm to allow for high-density packaging. The internal shutters provide maximum protection from lasers, dust, and other debris while protecting the ferrule.

Housing Color

LC Internal Shutter Slimpack Cluster Adapter

Product Features


9.6mm height for high-density packaging
6-,8-,12-core models
Shutter doors available in white or translucent
Available in a variety of colors
Fiber Type：SM（9/125），MM（50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.2dB or lower
Return Loss：UPC（55dB or more) ，APC（65dB or more）
Reference Standard：IEC-61754-20 and TIA-604-10A-2002 Standard-Type LC

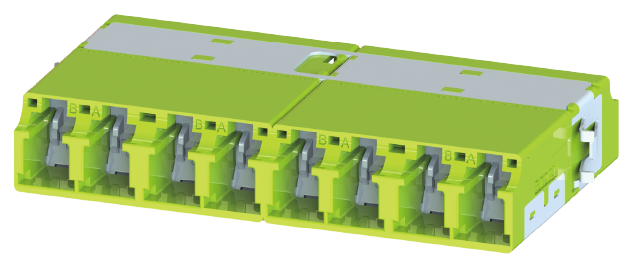

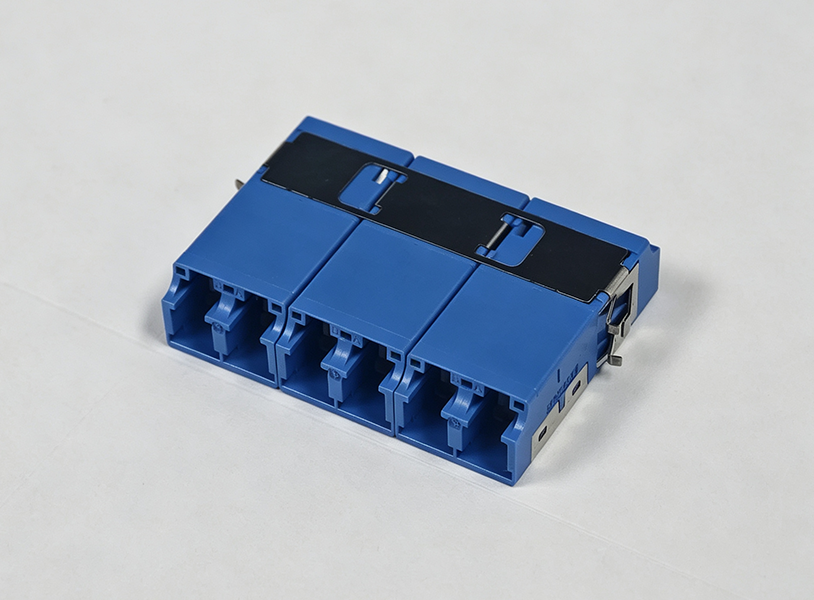

1LC Internal Shutter Slimpack Clusters(8 Core) Adapters

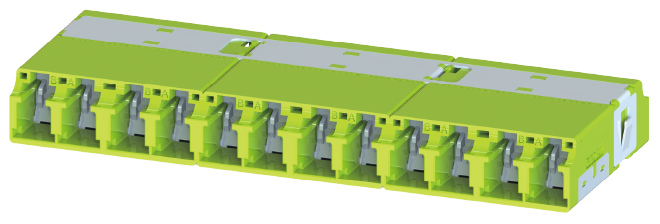

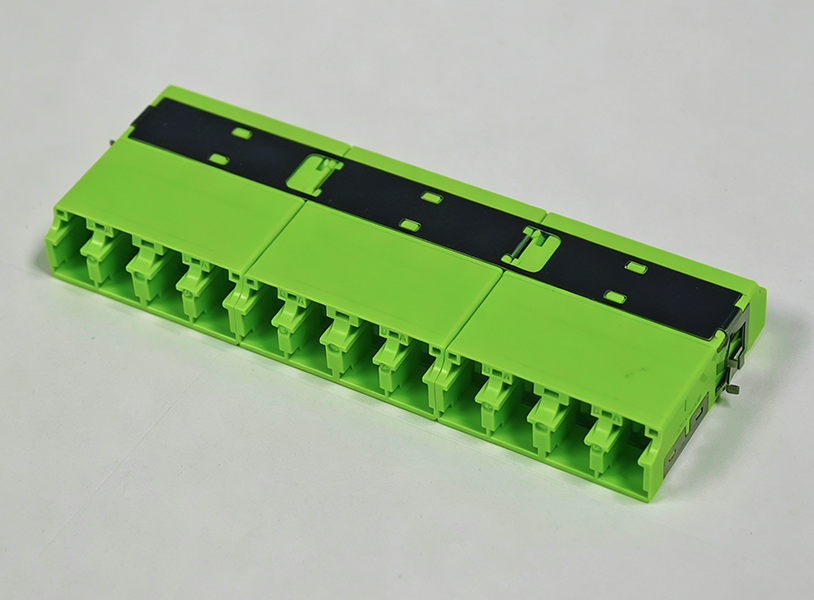

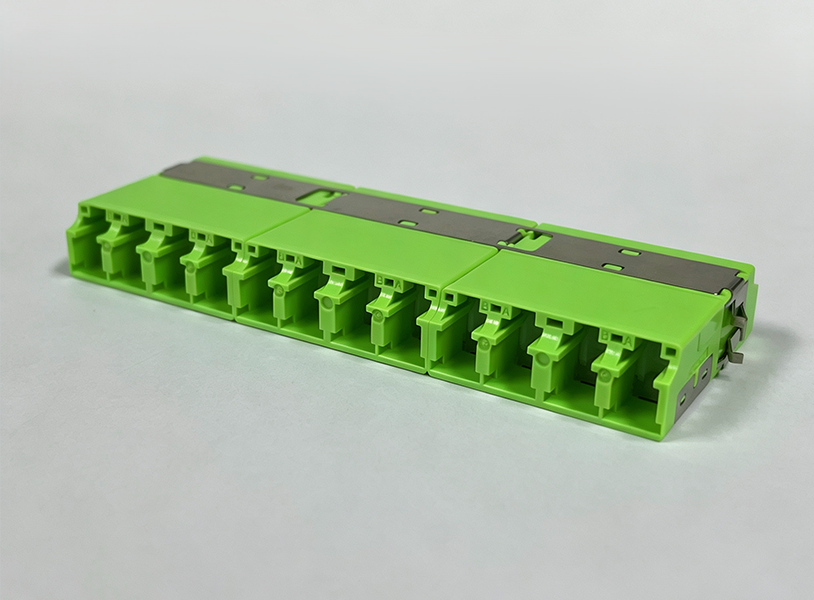

2LC Internal Shutter Slimpack Clusters(12 Core) Adapters

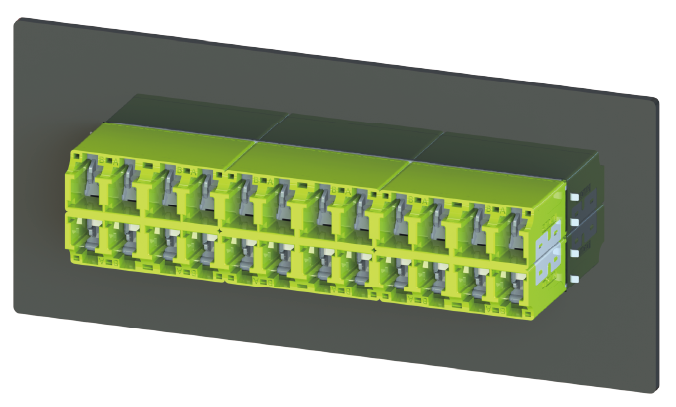

3LC Internal Shutter Slimpack Clusters Adapters - Back-to-Back Arrangemen

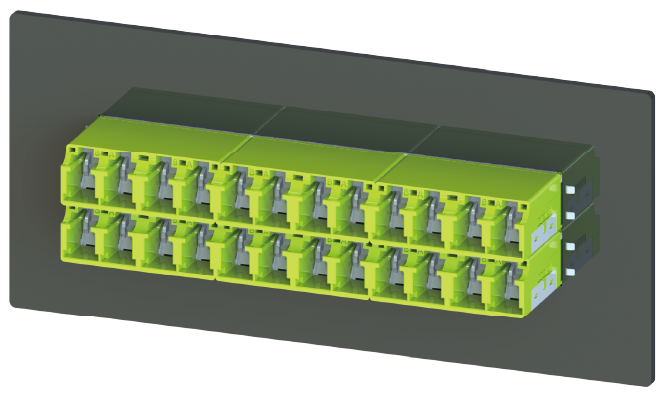

4 Internal Shutter Slimpack Clusters Adapters - Stack Arrangement

Select the product specifications here

  • 01

    Sort

Model List

Series Core Shutter Type Spring Type Housing Type Sleeve Type Housing Color
LCLC Series6  6 CoreIInternal Shutter (White)S Side Stable SpringSP Slimpack (9.6mm)Z ZirconiaAQAqua


8  8 CoreTInternal Shutter (Translucent)





BGBeige


T12 Core







BKBlack












BLBlue












BRBrown












GRGreen












HVHeather Violet












LGLime Green












OGOrange












RERed












VTViolet












YEYellow

  • LC Internal Shutter Slimpack Clusters Adapters 6ports

    2026.03.05
    pdf

  • LC Internal Shutter Slimpack Clusters Adapters 8ports

    2026.03.05
    pdf

  • LC Internal Shutter Slimpack Clusters Adapters 12ports

    2026.03.05
    pdf
