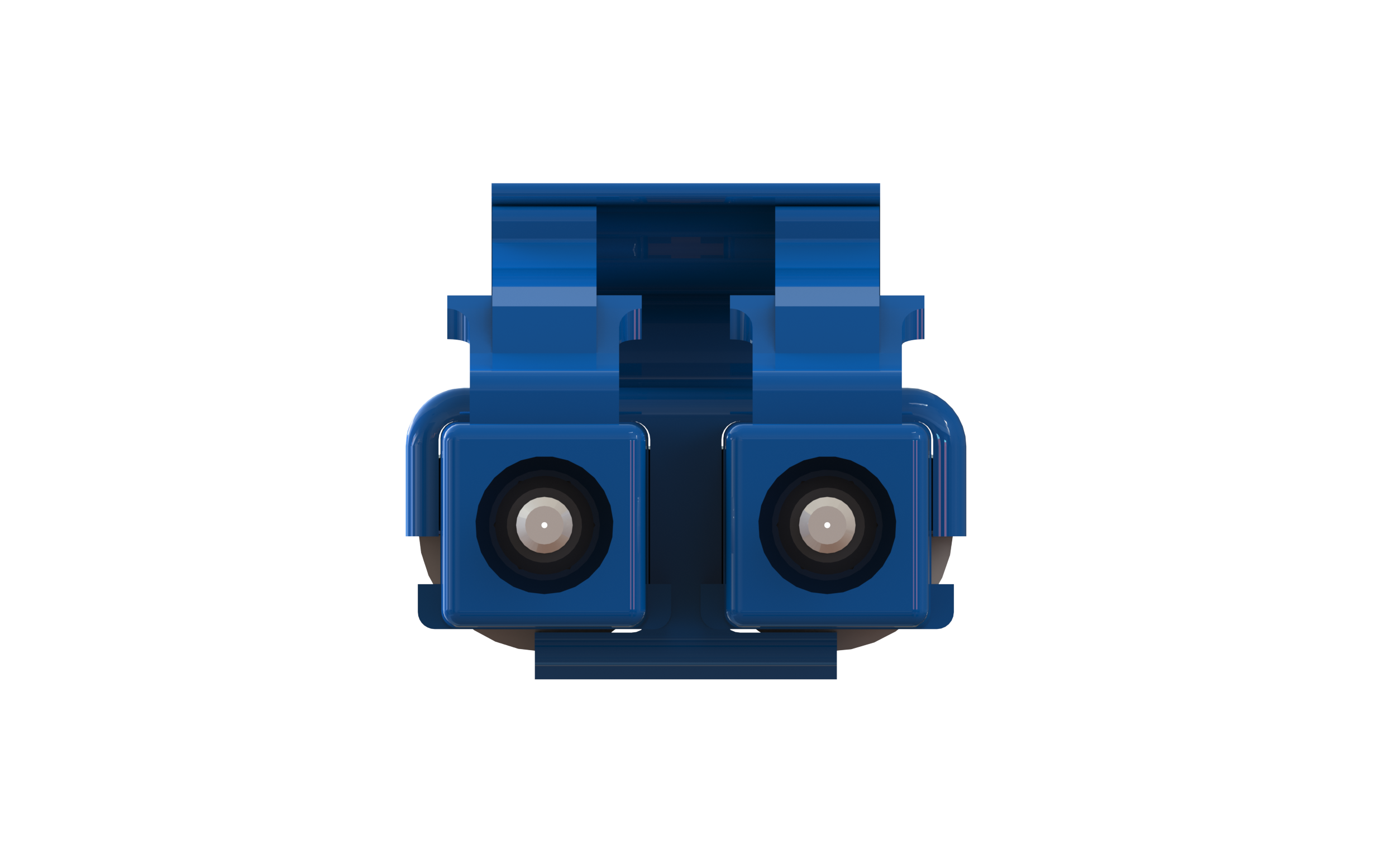

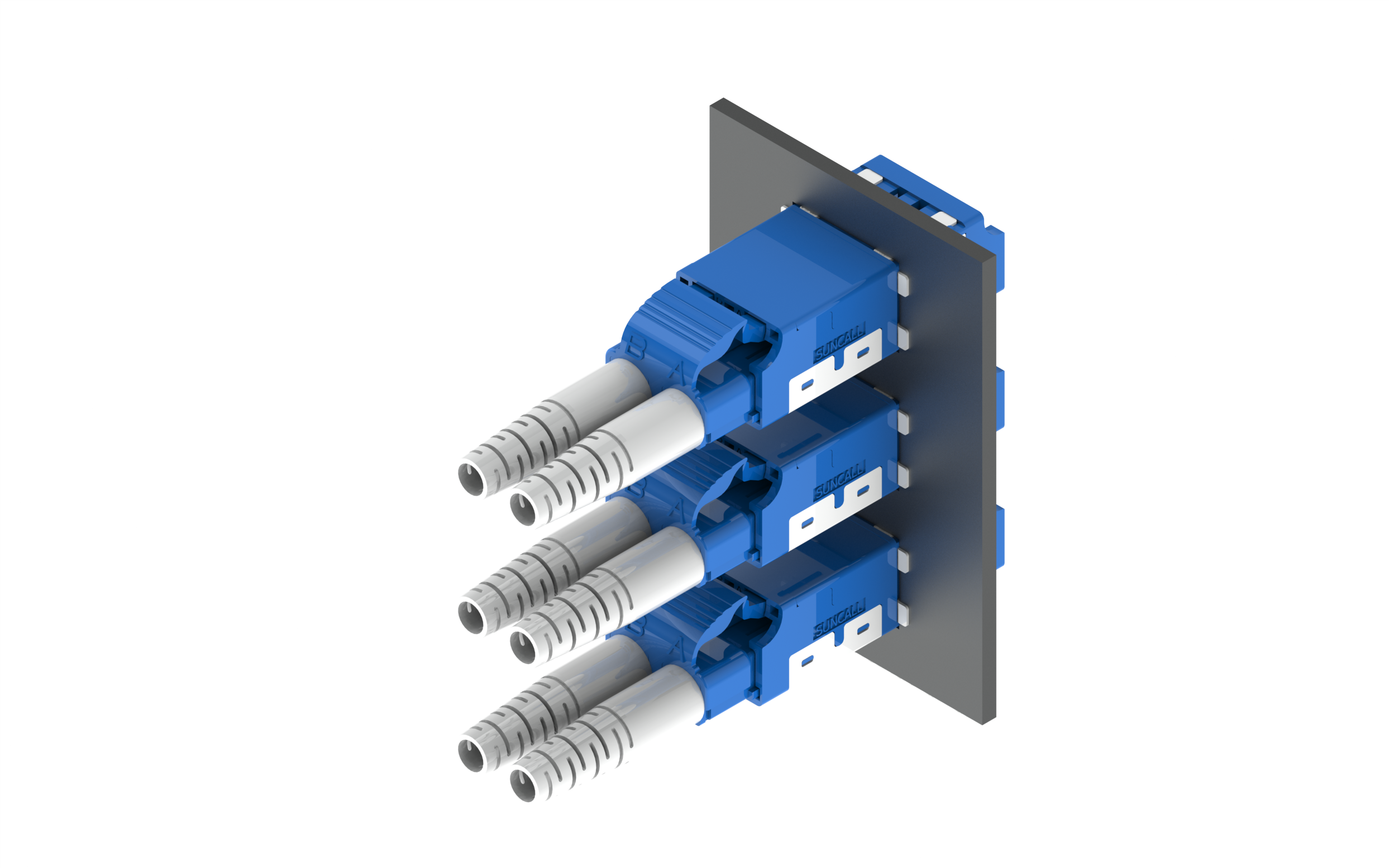

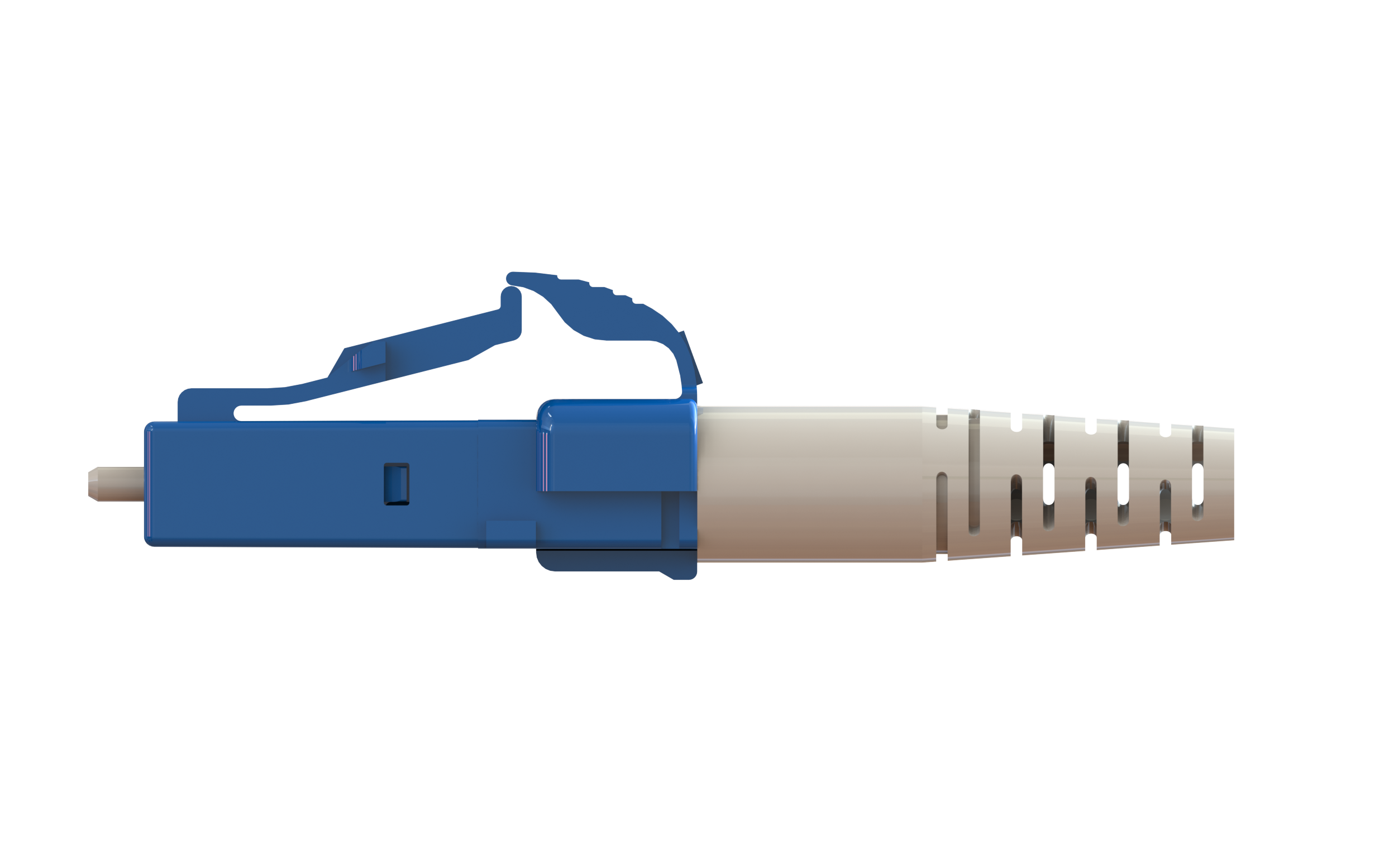

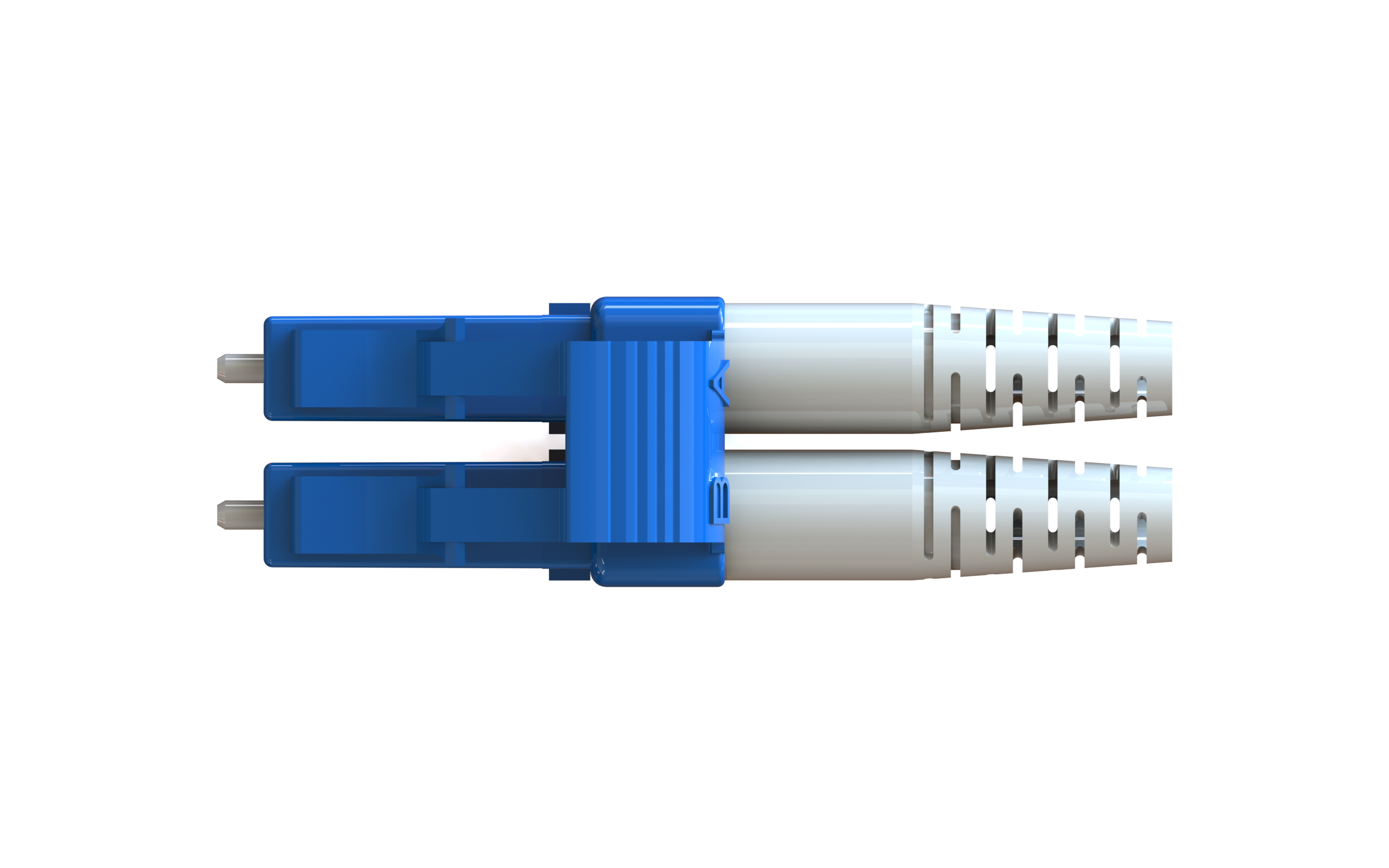

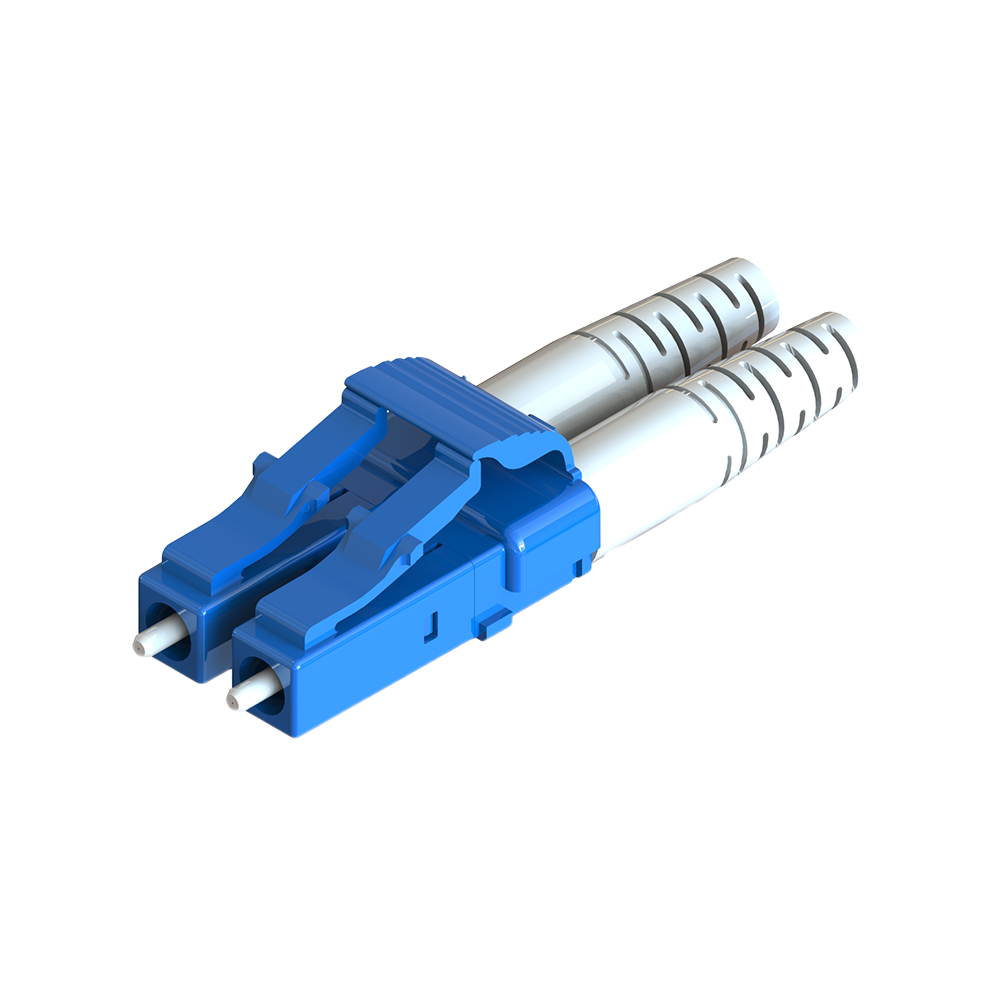

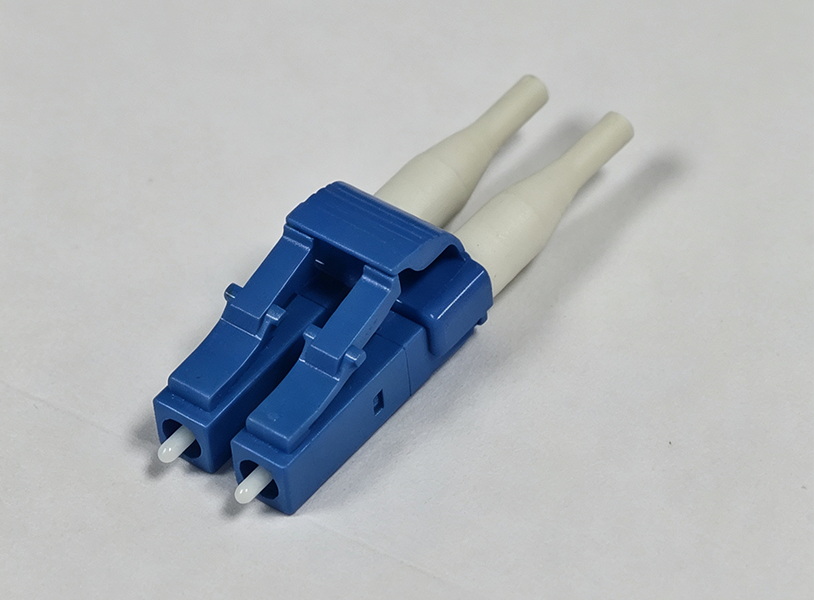

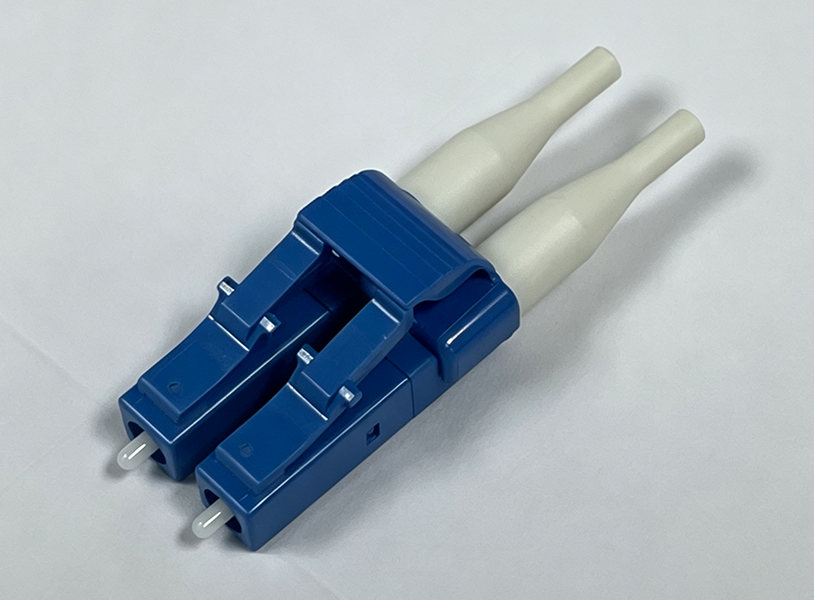

LC Duplex Connectors

Compact, space-saving design with the added convenience of dual connections. Our specialized duplex clip makes it easy to cover a full range of duplex applications with all the benefits of high-density packaging.Available in a standard two-piece design, or unibody option for added durability.

Housing Color

Boot Color

LC Duplex Connectors

Product Features

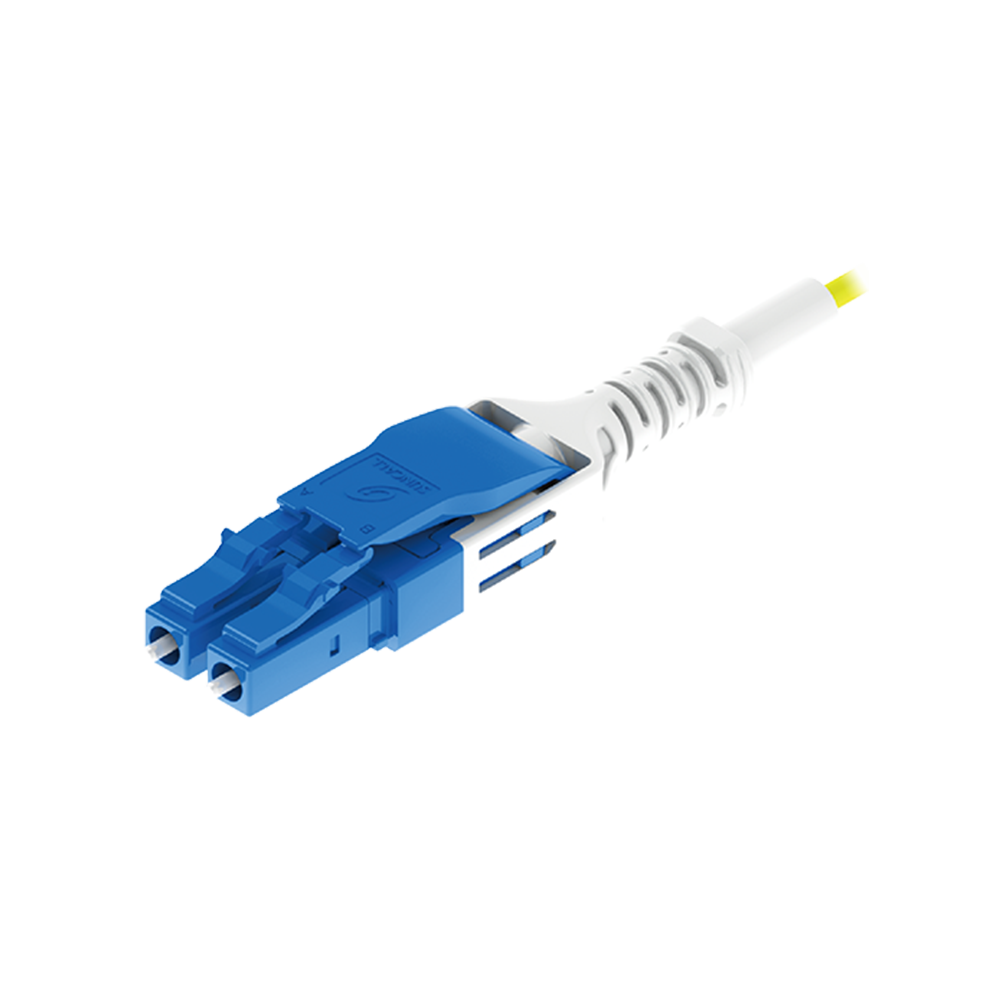

Two body type options: 2-piece or Unibody

Three boot lengths: short,middle,long

Available in a variety of colors

Fiber Type：SM（9/125），MM（50/125，62.5/125）

Adaptation Pattern：SM，MM，APC

Insertion Loss：0.3dB or lower

Return Loss：UPC（55dB or more) ，APC（65dB or more）

Reference Standard：IEC-61754-20,IEC-61755-3-2 and TIA-604-10A-2002 Standard-Type LC

Select the product specifications here

01

Sort

Model List

Body Type		Mode		Product Type		Cable Spec		Housing Color		Ferrule Type & ID		Concentricity		Boot Type		Boot Color		Dust Cap Type		Shrink Tube Type
LC	2-Piece Body	SD	SM Duplex	P	Per Assy	09	Φ 0.9mm Cable	AQ	Aqua	F50	Flat 125.0um	05	0.5um	BA	Buffer Adapter Boot (0.9mm)	AQ	Aqua	S	Square Dust Cap	N	No tube (0.9/ 3.0mm )
LU	Unibody	MD	MM Duplex			12	Φ 1.2mm Cable	BG	Beige	F55	Flat 125.5um	10	1.0um (Standard)	LB	Long Boot (1.2/2.0/3.0mm)	BG	Beige	T	T Dust Cap	YY	Yellow & Yellow (1.2 / 2.0mm)
		AD	APC Duplex			20	Φ 2.0mm Cable	BL	Blue	F60	Flat 126.0um	40	4.0um	MB	Middle Boot (1.2/2.0/3.0mm)	BL	Blue			WW	White & White (1.2 / 2.0mm)
						30	Φ 3.0mm Cable	GR	Green					SB	Short Boot (all cable specs)	GR	Green			WY	White & Yellow (1.2 / 2.0mm)
								HV	Heather Violet					HV	Heather Violet
														WH	White (Standard)

LC Duplex Long Boot Connector 2.0mm V1.0

2026.03.05

pdf
LC Duplex Short Boot Connector 1.2&1.6mm V2.1

2026.03.05

pdf
LC Duplex Short Boot Connector 2.0mm V2.2

2026.03.05

pdf
LC Duplex Short Boot Connector 3.0mm V2.0

2026.03.05

pdf
LC Duplex Long Boot Connector 2.0mm V1.0

2026.03.05

pdf
LC Duplex Connector 2.0mm V2.0

2026.03.05

pdf
LC Duplex Connector 3.0mm V2.0

2026.03.05

pdf
LC Duplex Connector 0.9mm V2.0

2026.03.05

pdf

LC Duplex Connector 0.9mm

2026.03.06

pdf

LC Duplex Connector 2.0mm

2026.03.06

pdf
LC Duplex Connector 3.0mm V1.2

2026.03.06

pdf
LC Duplex Connector 1.2mm V1.0

2026.03.06

pdf
LC Duplex Connector 2.0mm V1.0

2026.03.06

pdf
LC Duplex Connector 3.0mm V1.0

2026.03.06

pdf
LC Duplex Connector 0.9mm V1.1（APC）

2026.03.06

pdf
LC Duplex Connector 0.9mm V1.1

2026.03.06

pdf
