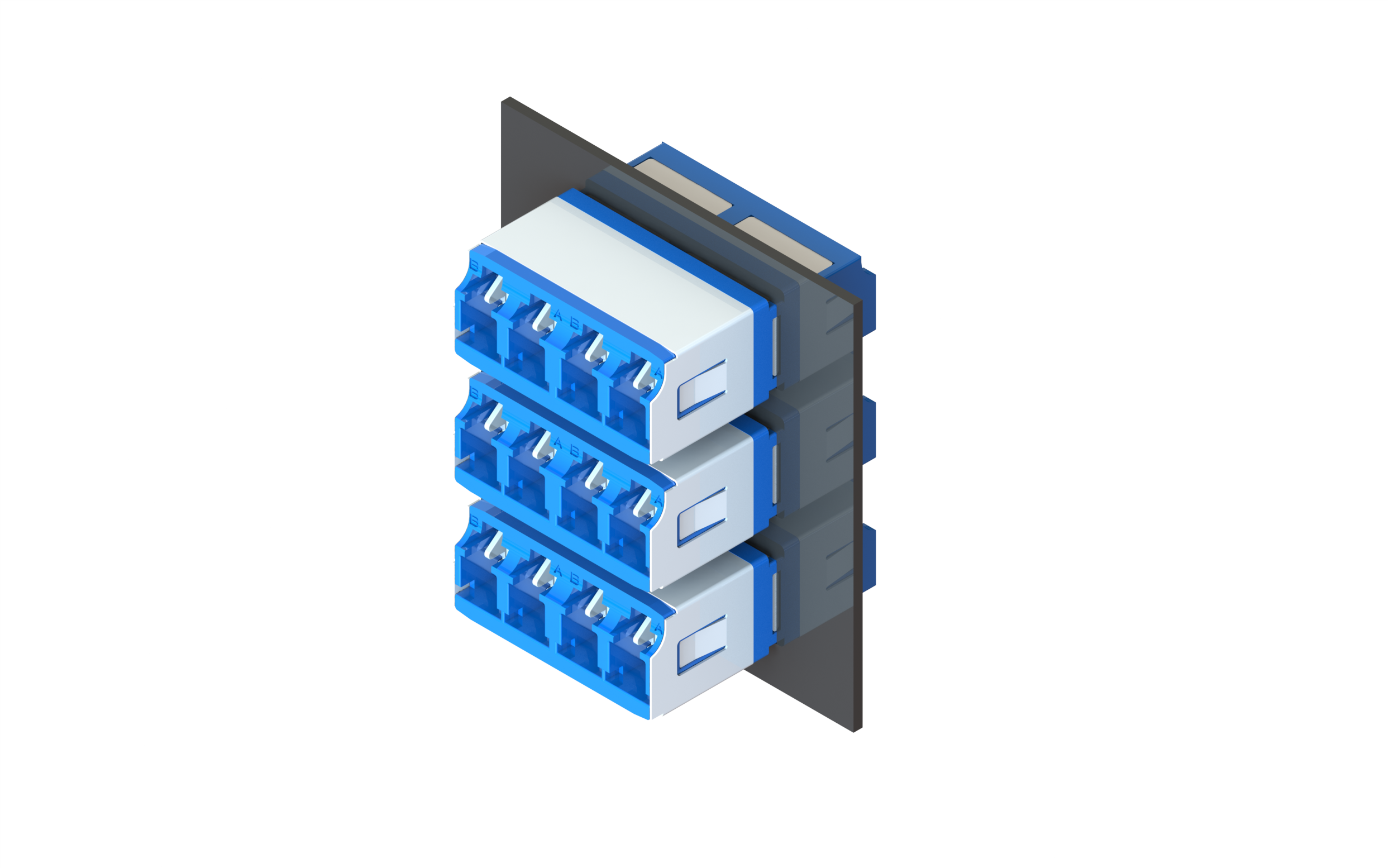

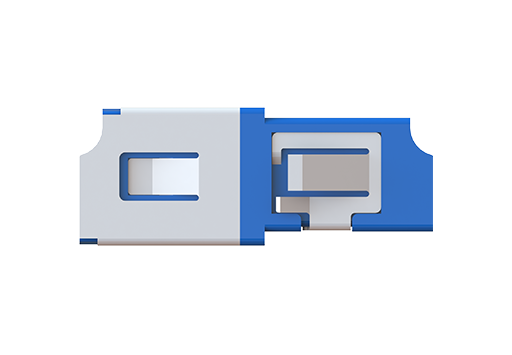

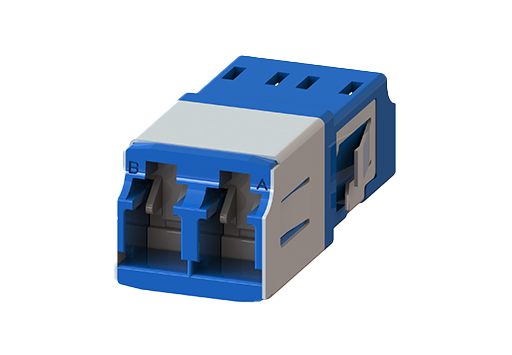

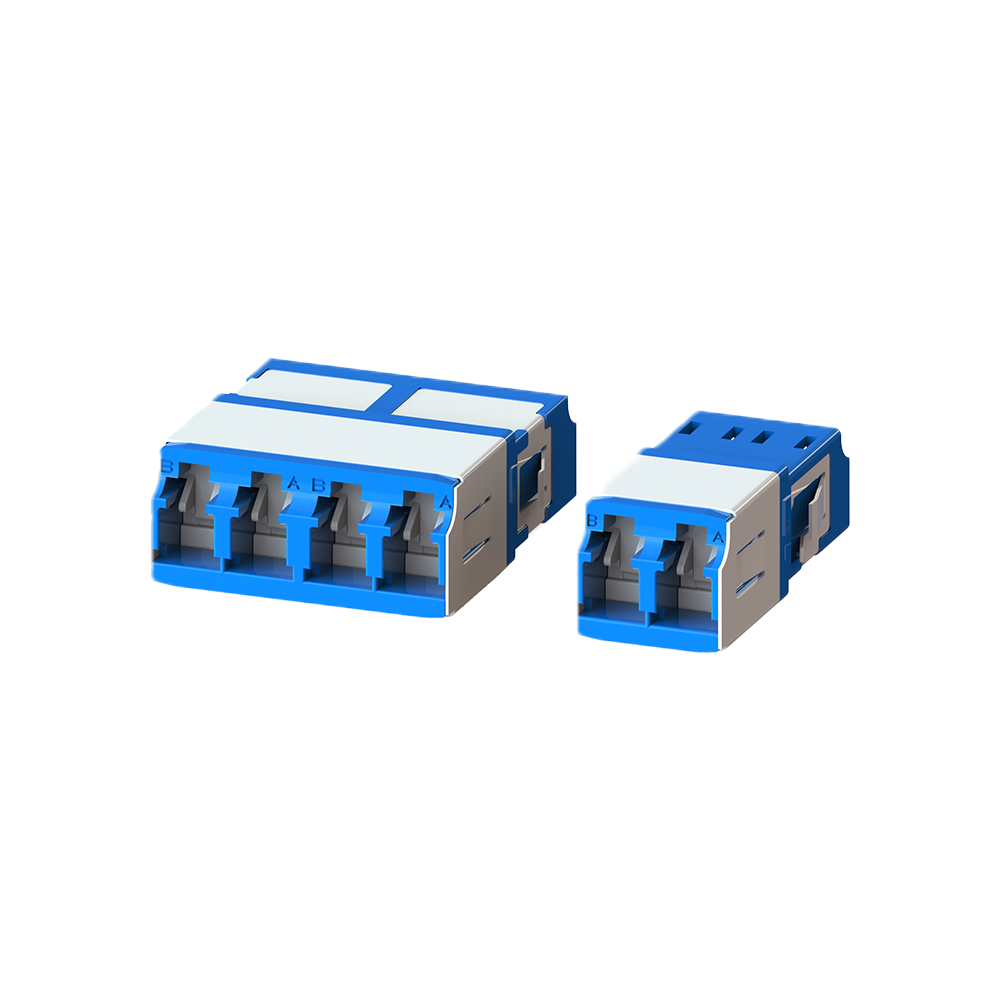

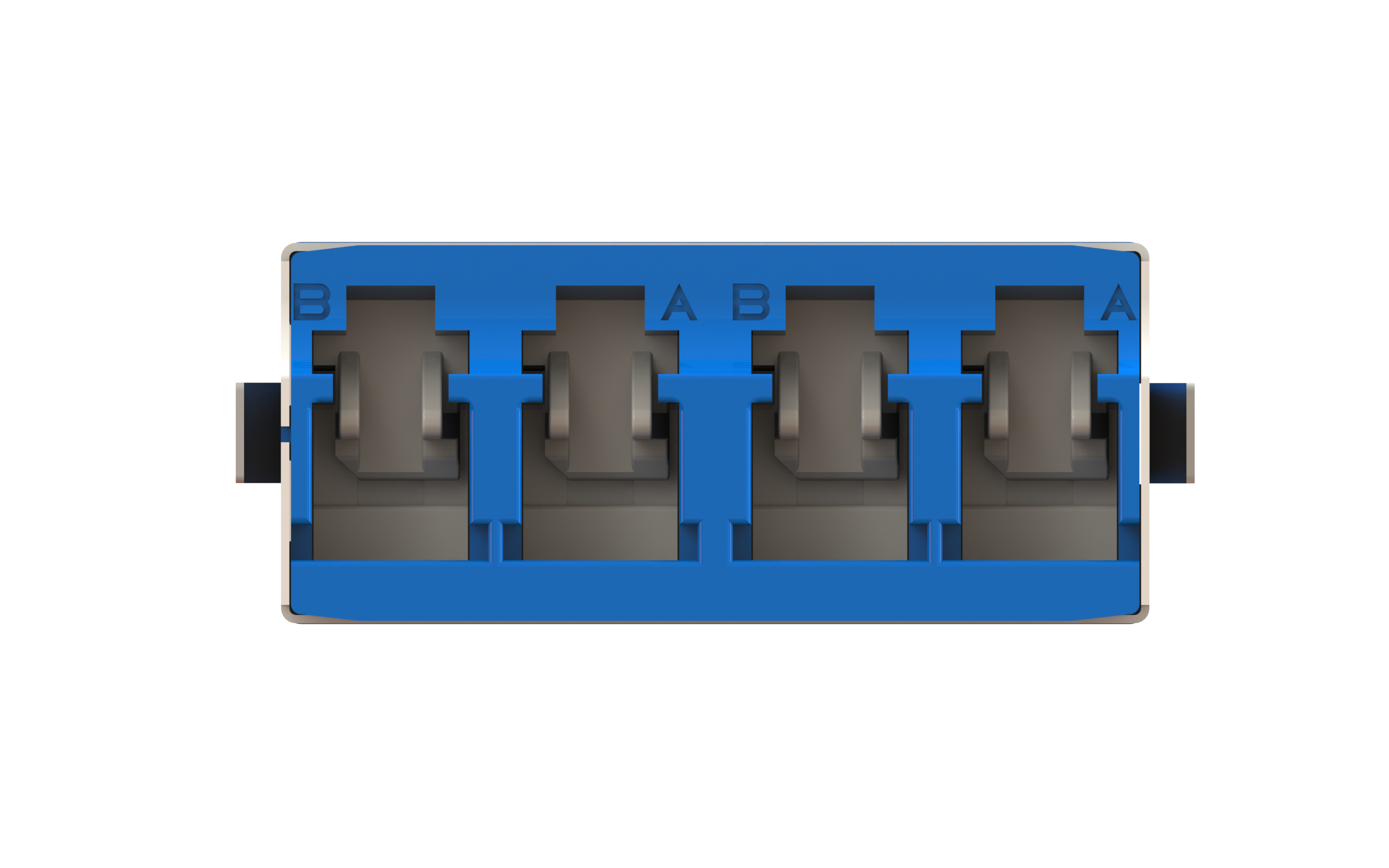

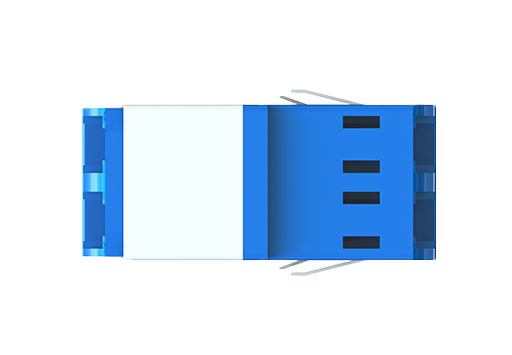

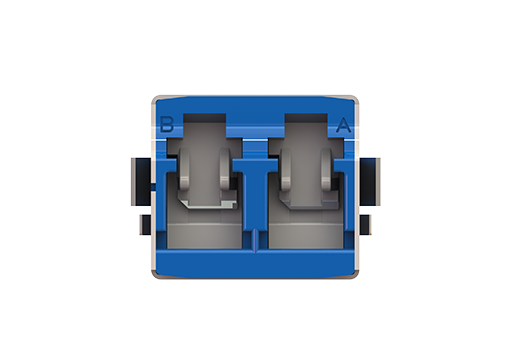

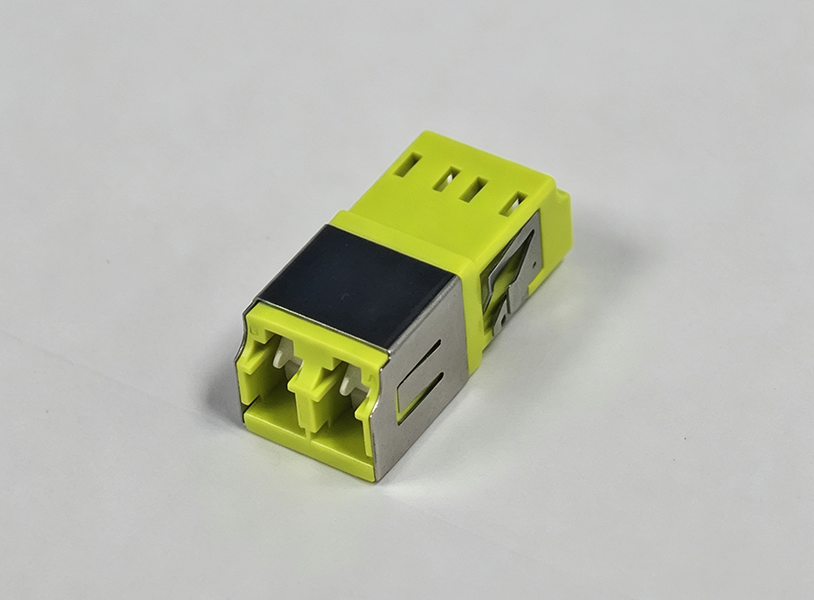

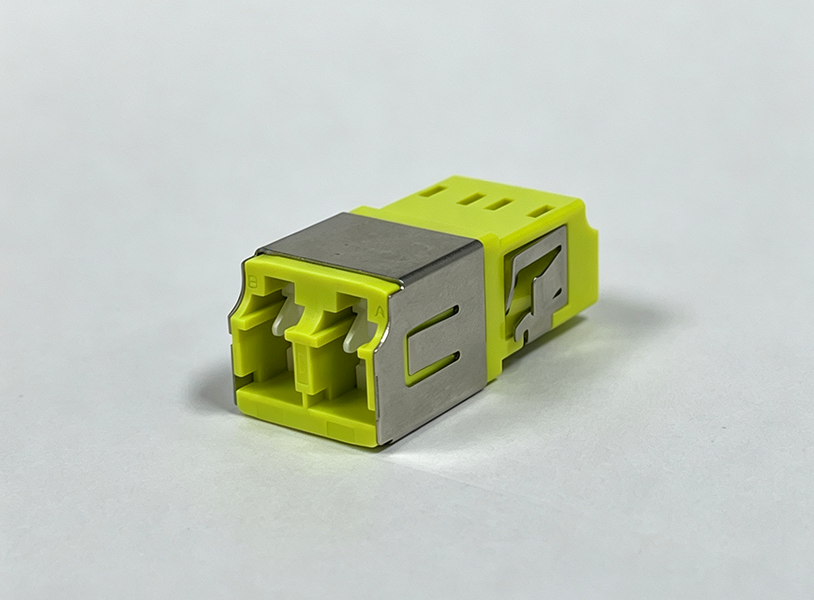

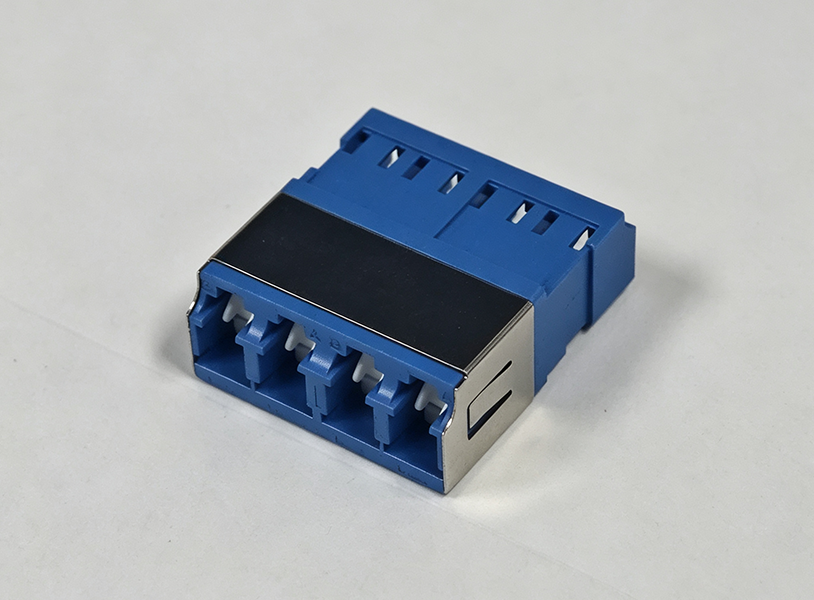

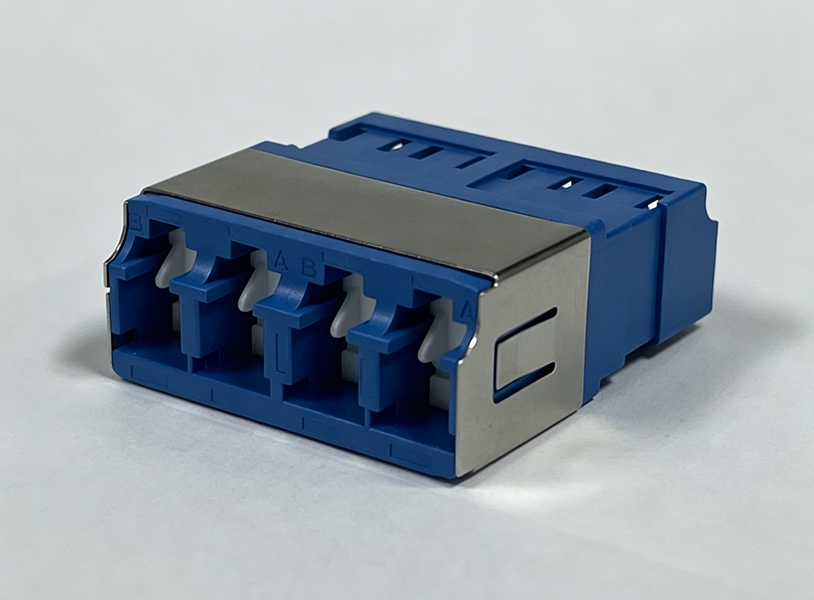

LC Internal Shutter Regular Adapters - Duplex & Quad

Our original LC Internal Shutter Adapters with a height of 11.4mm feature our uniquely designed internal shutters, with automatic open and close operation without touching the ferrule. The internal shutters offer maximum protection against lasers, dust and other contaminants.

Housing Color

LC Internal Shutter Regular Adapters - Duplex & Quad

Product Features


Original height of 11.4mm
2 spring latch designs available
Shutter doors available in white or translucent
Available in a variety of colors


Fiber Type：SM（9/125），MM（50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.2dB or lower
Return Loss：UPC (55dB or more) ，APC（65dB or more）
Reference Standard：IEC-61754-20 and TIA 604-10A-2002 Standard Type LC

Select the product specifications here

  • 01

    Sort

Model List

Series Spring TypeHousing Type Sleeve Type Housing Color
LC2ILC DX Internal Shutter (White)SSide StableHDRegular (11.4mm)Z ZirconiaAQAqua
LC2TLC DX Internal Shutter (Translucent)VVertical Stable



BGBeige
LC4ILC QD Internal Shutter (White)LRattle-less (Quad only)



BKBlack
LC4TLC QD Internal Shutter (Translucent)





BLBlue








BRBrown








GRGreen








HVHeather Violet








LGLime Green








OGOrange








RERed








VTViolet








YEYellow

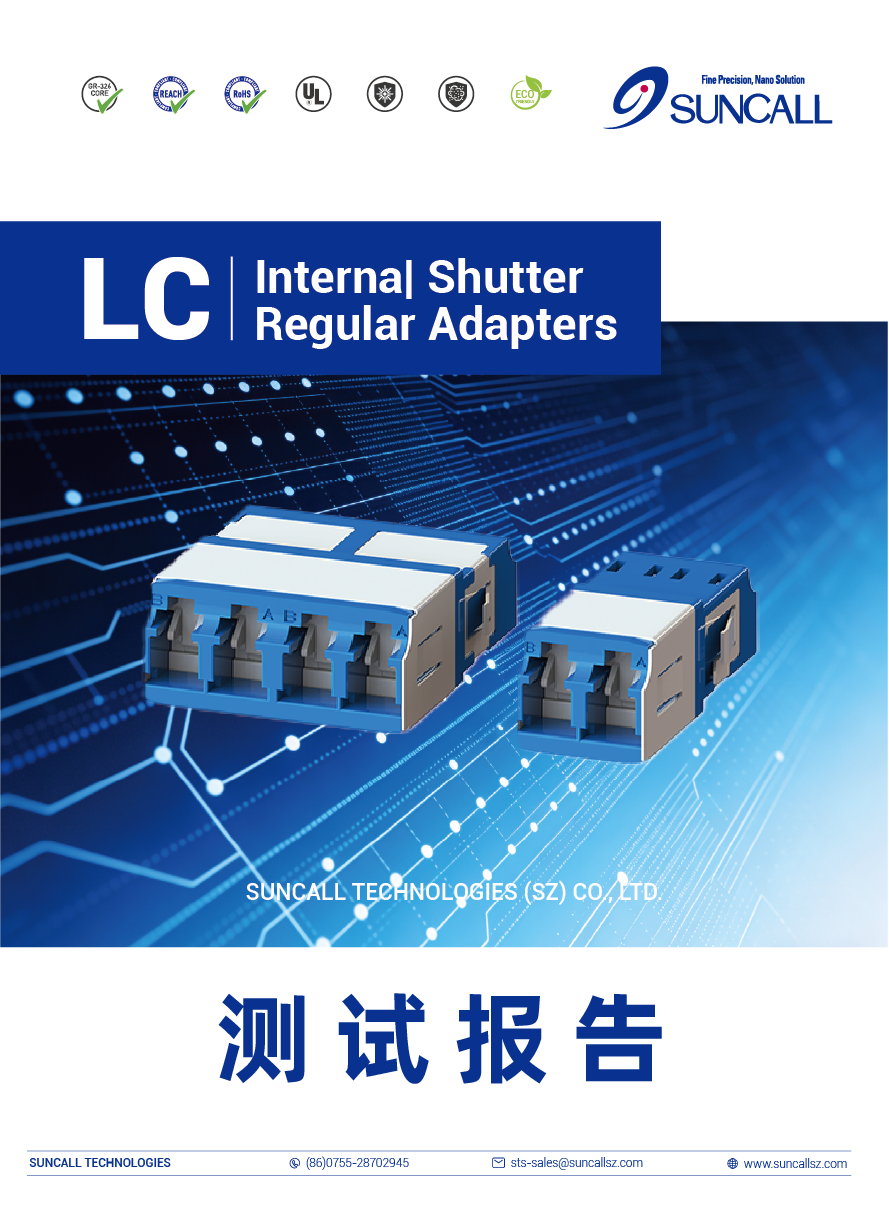

  • LC Interna| Shutter Regular Adapters V2.5

    2026.03.05
    pdf

  • LC Duplex Interna| Shutter Regular Adapters

    2026.03.06
    pdf

  • LC Quad Interna| Shutter Regular Adapters Regular Spring

    2026.03.06
    pdf

  • LC Quad Interna| Shutter Regular Adapters

    2026.03.06
    pdf
