MPO 12F & 24F Pull Boot Connector

Our reinforced push-pull boot design provides easy connect and disconnect during high-density mountings, no tabs required. Save space with the trim design and improve cable management with the variety of housing colors available. This sturdy design is available in 2.0mm and 3.0mm.

Housing Color

MPO 12F & 24F Pull Boot Connector

Product Features

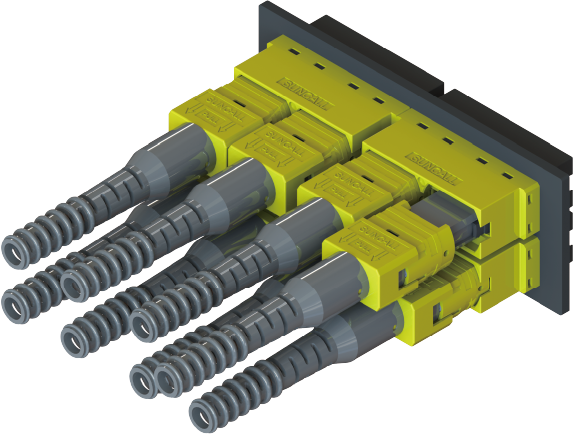

Designed specifically for high-density packaging with an easy connection and disconnection

Reinforced pull boot eliminates the need for a tab

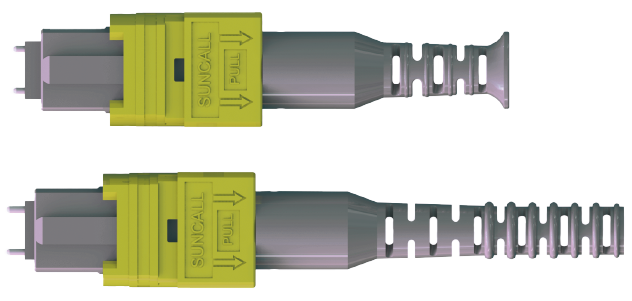

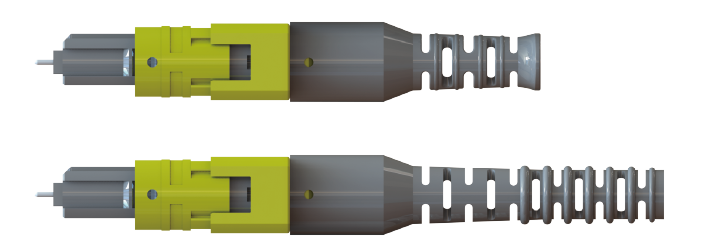

Available in Round Standard + Round Short Pull Boot

Available in a variety of housing colors

Fiber Type：12F、24F

Adaptation Pattern：SM, MM, Low Loss SM, Low Loss MM

Insertion Loss：SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB

Return Loss：SL 60dB (8°polish)/SM 60dB (8°polish)/ML 20dB (flat polish)/MM 20dB (flat polish)

Reference Standard：IEC-61754-7 and TIA604-18

Select the product specifications here

01

Sort

Model List

Series		Product Type		Gender Type		Housing Color		Ferrule Core/No Ferrule		Ferrule Type		Boot Type		Crimp Type		Cable Spec		Shrink Tube Type
MPO	MPO Series	PA	Pre Assy	M	Male	Aqua	Aqua	W08	8 Core	SM	Single Mode	RD	Round Standard Boot	TC	Two Crimp	20P	Φ2.0mm Cable Pull Boot	L	Suncall Logo
				F	Female	BG	Beige	W12	12 Core	SL	Single Mode Low Loss	RS	Round Short Boot	HS	Heat Shrink Tube	30P	Φ3.0mm Cable Pull Boot	N	No Logo
						BK	Black	W24	24 Core	MM	Multi Mode			OC	One Crimp
						GR	Green			ML	Multi Mode Low Loss
						HV	Heather Violet
						LG	Lime Green
						YE	Yellow

MPO 12F Short Pull Boot Connector 2.0mm

2026.03.05

pdf
MPO 12F Long Pull Boot Connector 2.0mm

2026.03.05

pdf
MPO 12F Short Pull Boot Connector 3.0mm

2026.03.05

pdf
MPO 12F Pull Boot Connector 3.0mm

2026.03.05
MPO 12F Short Pull Boot Connector 3.0mm

2026.03.05

pdf

MPO 12F & 24F Short Pull Boot Connector 2.0mm

2026.03.06

pdf
MPO 12F & 24F Long Pull Boot Connector 3.0mm

2026.03.06

pdf
MPO 12F & 24F Long Pull Boot Connector 2.0mm

2026.03.06

pdf
MPO 12F & 24F Short Pull Boot Connector 3.0mm

2026.03.06

pdf
