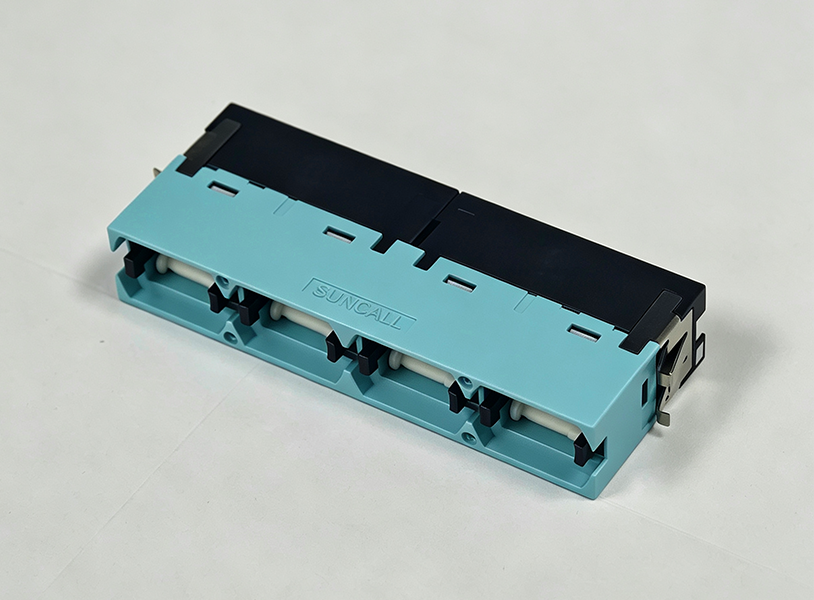

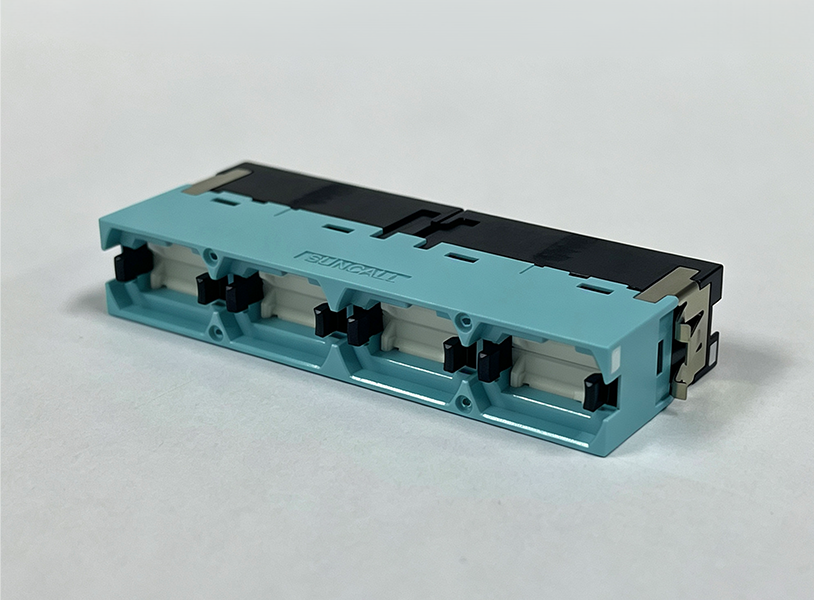

MPO 16F Internal Shutter Cluster Adapters

NEW-A Suncall Exclusive -MPO 16F Internal Shutter Cluster Adapters. Based off our 12F cluster adapters,our New 16F Internal Shutter Cluster Adapters integrate the same award-winning shutter design to provide stability, protection and reduces waste (no dust caps needed on the front side). The internal shutters provide protection from lasers, dust and debris while protecting the ferrule. Both adapter sizes interchange with one of our LC cluster adapters respectively.

OTW Housing Color

BTW Housing Color

MPO 16F Internal Shutter Cluster Adapters

Product Features

9.4 mm height for high-density packaging

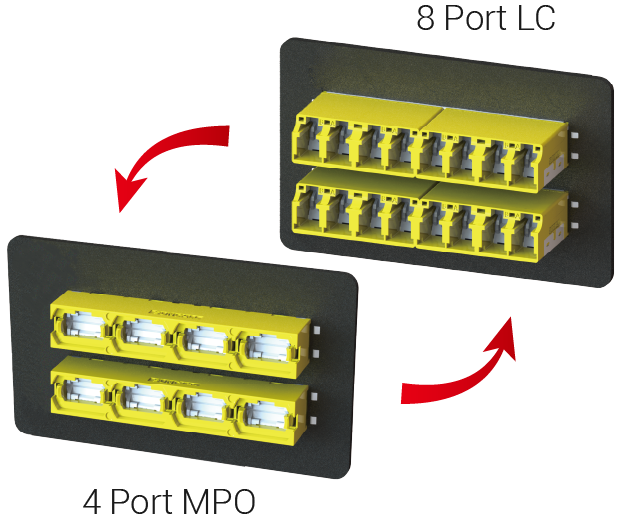

The 4-Port MPO Cluster interchangeable with Suncall LC 8-port clusters

The 6-Port MPO Cluster interchangeable with Suncall LC 12-port clusters

Available in a variety of housing colors

Fiber type：16F、32F

Applicable mode：SM, MM, Low Loss SM, Low Loss MM

Insertion loss：SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB

Return loss：SL 60dB (8°polish)/SM 60dB (8°polish)/ML 20dB (flat polish)/ MM 20dB (flat polish)

Reference standard：IEC-61754-7-3-2019 and TIA-604-18-2015

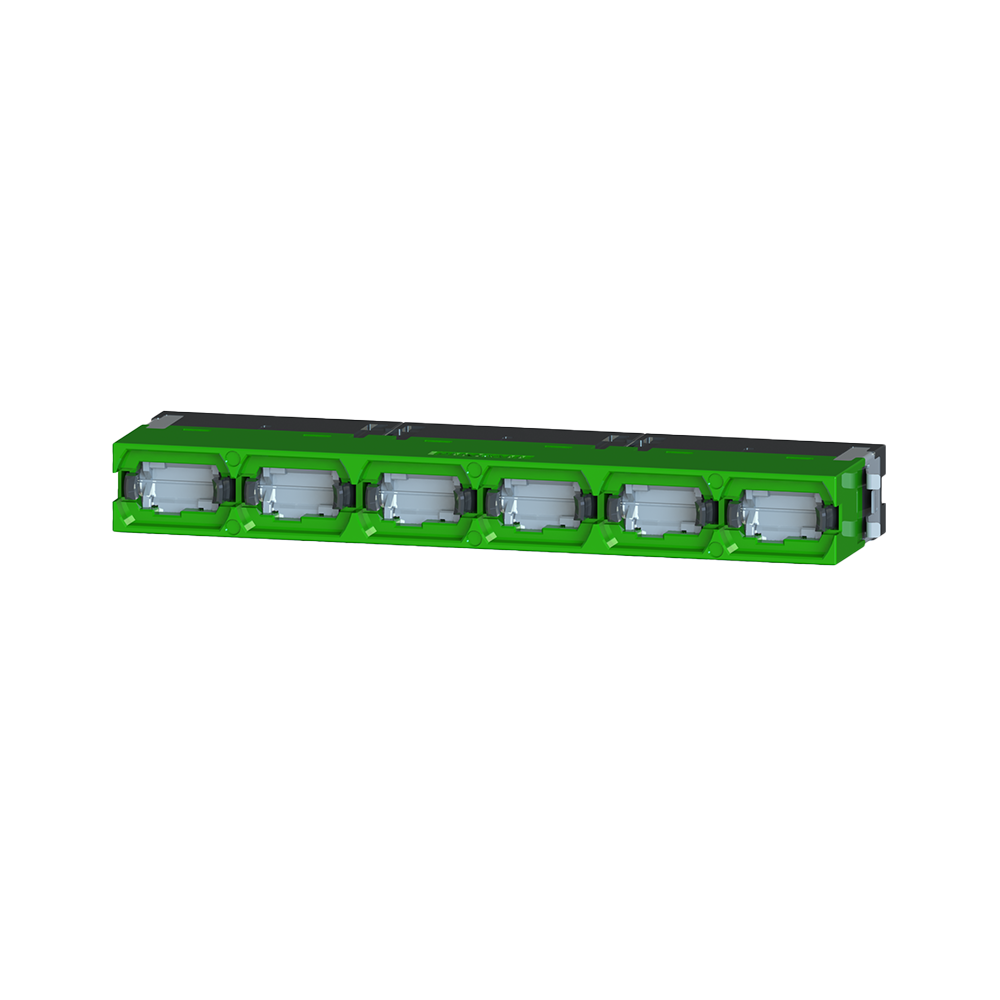

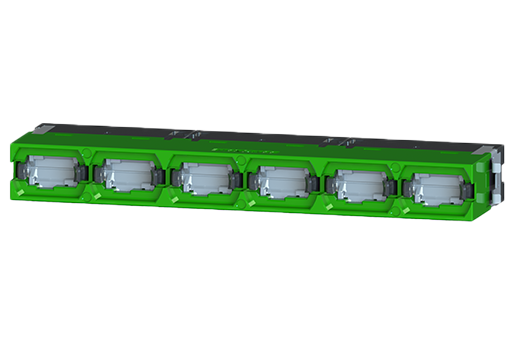

1 MPO cluster 6 port Internal Shutter Adapters

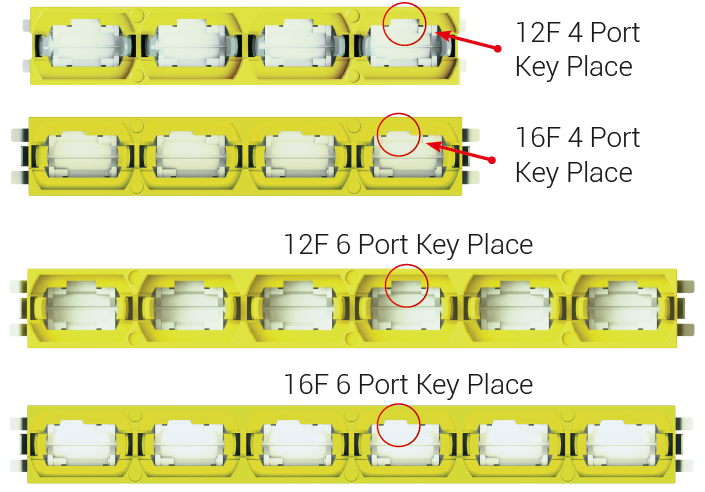

2 MPO cluster 4 port + 6 port key difference

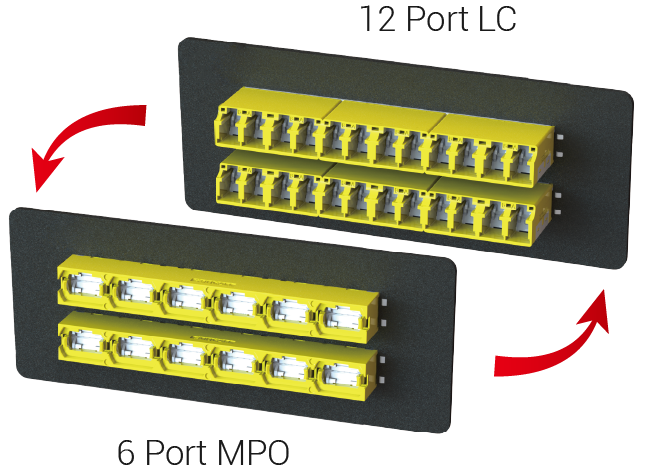

3Interchangeable from LC SP 12 port IS adapter to MPO cluster 6 port IS adapters

4Interchangeable from LC SP 12 port IS adapter to MPO cluster 6 port IS adapters

Select the product specifications here

01

Sort

Model List

Series		Product Type		Shutter Type		Key Type		Spring Type		BTW Housing Color		OTW Housing Color		Logo
MPO	MPO Series	TC4	4 Port Adapter (12F/24F)	I	White Shutter	UU	Key Up-Key Up	W	With Spring	AQ	Aqua	AQ	Aqua	L	Suncall Logo
		TC6	6 Port Adapter (12F/24F)	T	Translucent Shutter	UD	Key Up-Key Down			BG	Beige	BG	Beige	N	No Logo
		TC4	4 Port Adapter (16F/32F)							BK	Black	BK	Black
		TC6	6 Port Adapter (16F/32F)							BL	Blue	BL	Blue
										CG	Cool Gray	CG	Cool Gray
										GR	Green	GR	Green
										YE	Yellow	YE	Yellow

MPO 16F & 32F 4 ports Internal Shutter Adapter

2026.03.05

pdf

MPO 16F & 32F 4 ports Internal Shutter Adapter

2026.03.06

pdf
