MPO 12F Multi-function Connector & Exchanger Tool Set

This handy tool set is designed to enable fast and easy changes to gender and polarity. The two tools work synergistically to facilitate gender and polarity adjustments for the MPO Multi-function Connector.

Housing Color

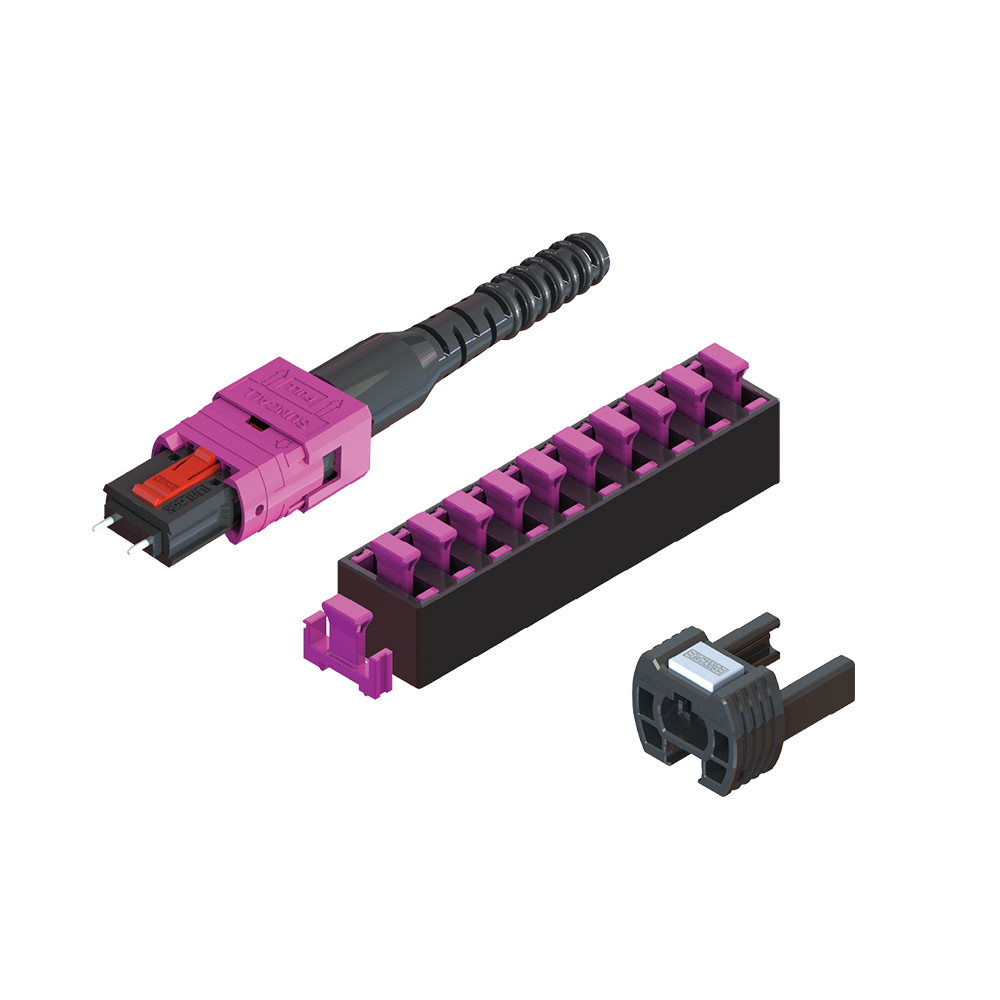

MPO 12F Multi-function Connector & Exchanger Tool Set

Product Features

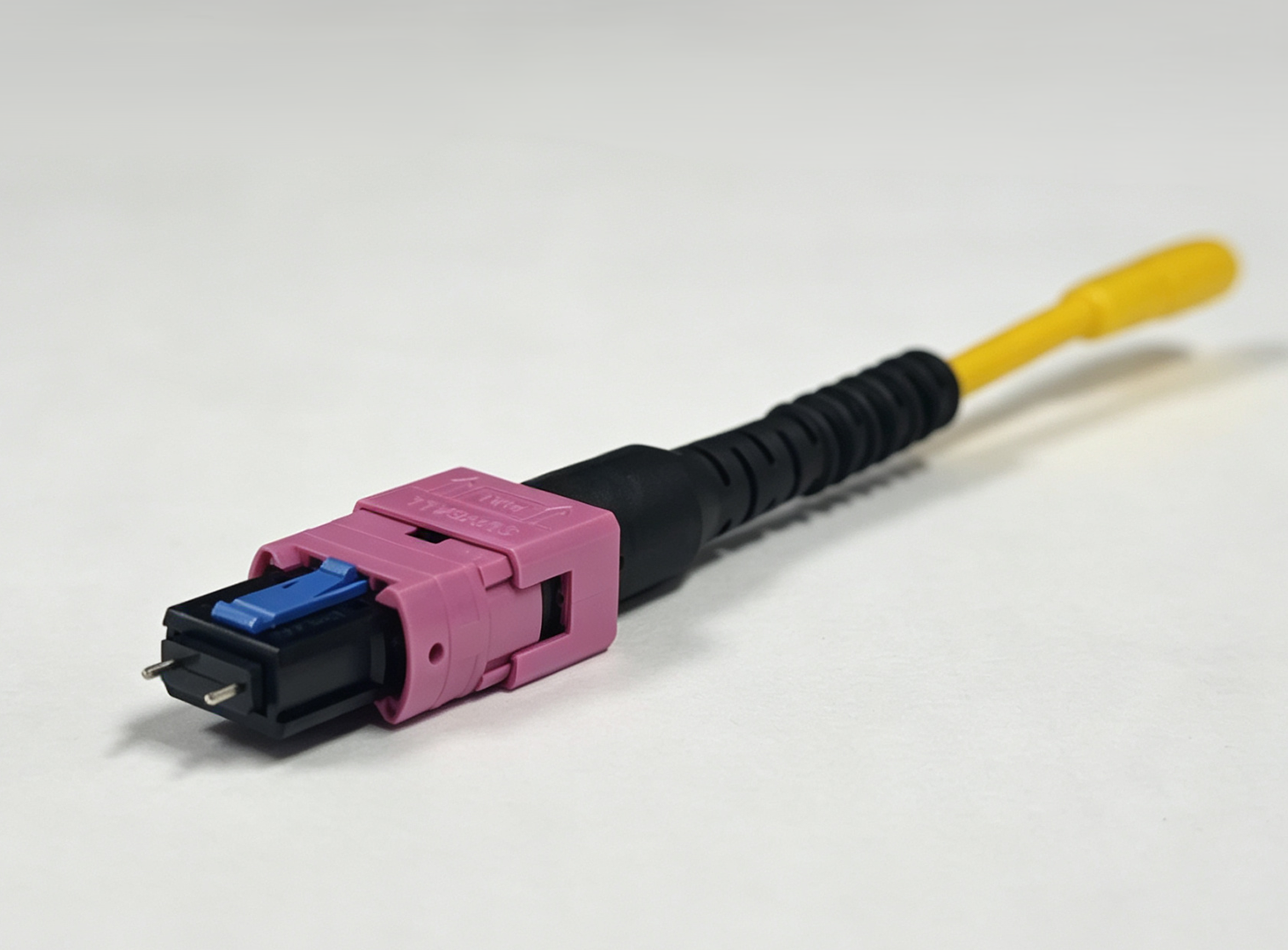

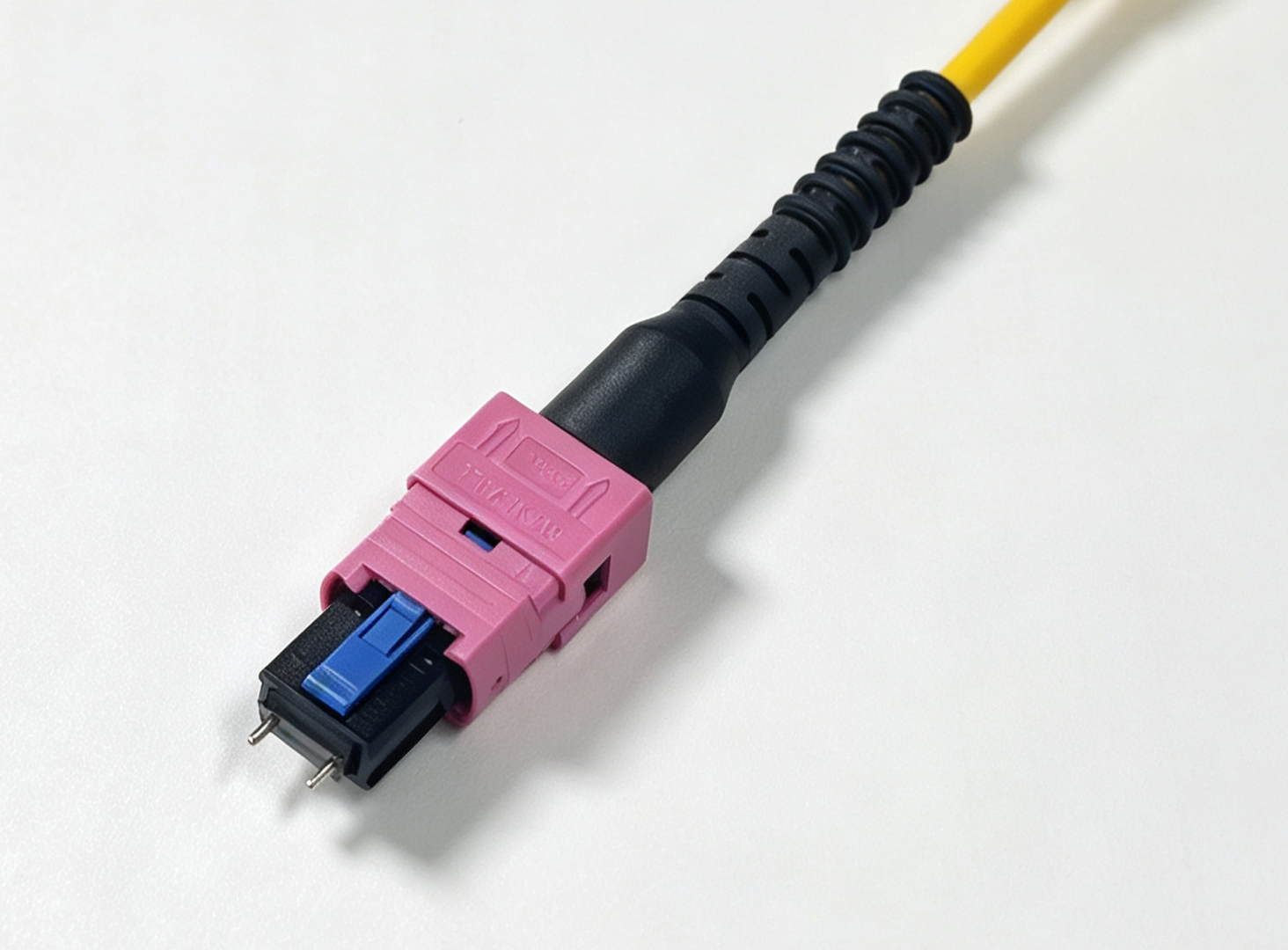

MPO Multi-function Connector with reinforced pull boot

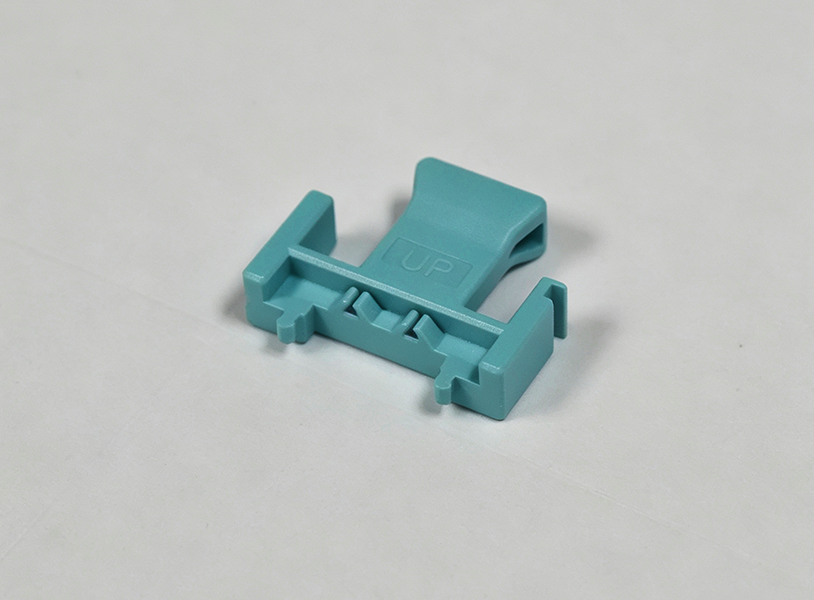

Exchanger Pin Tool

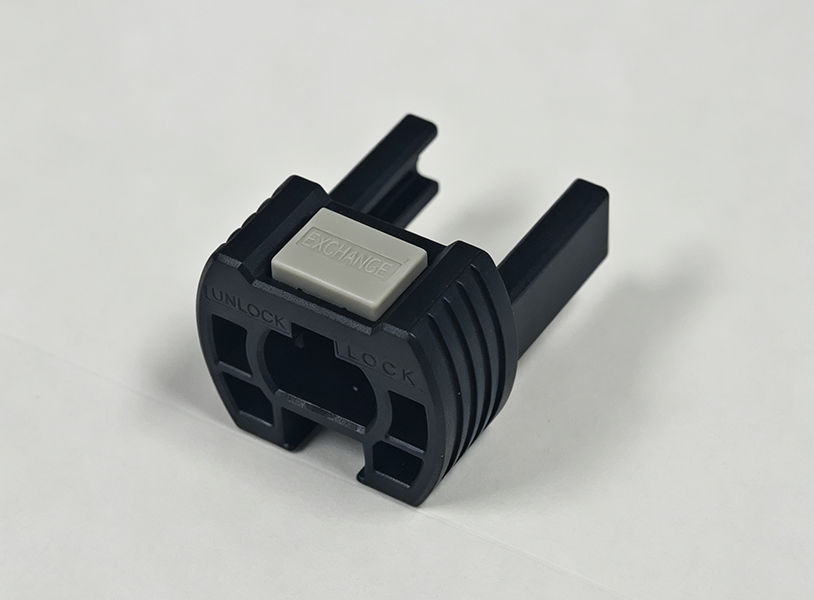

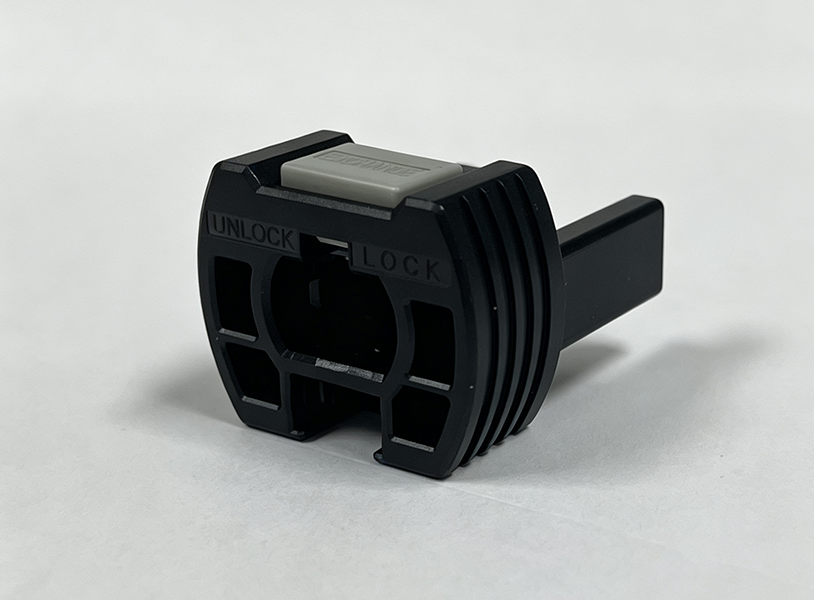

Housing Tool

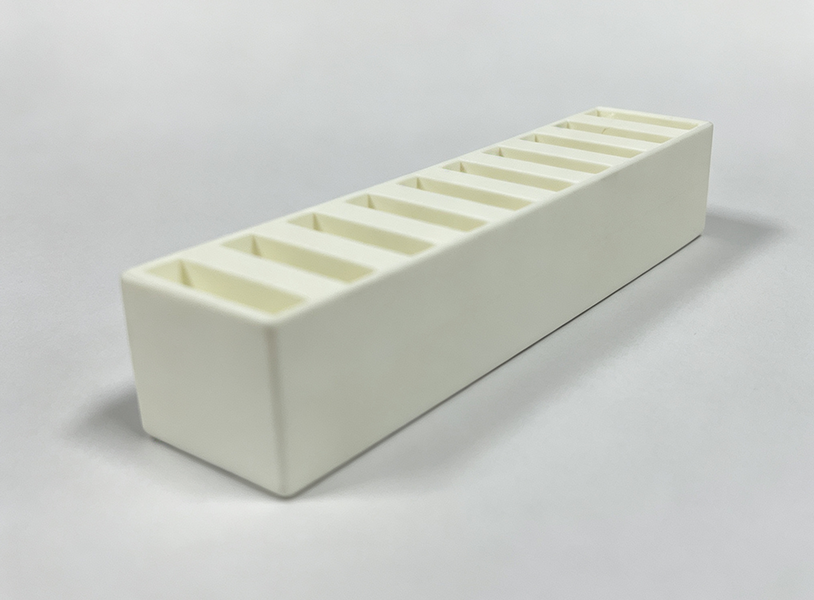

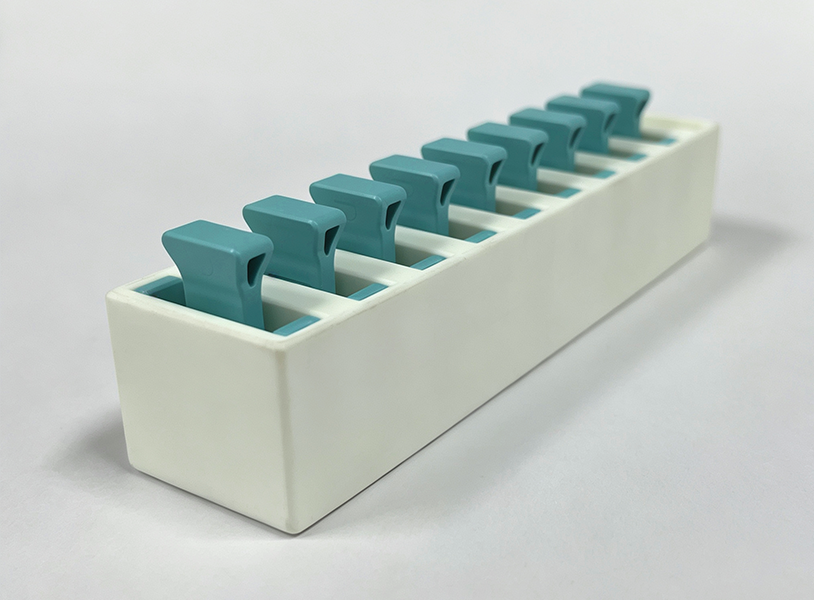

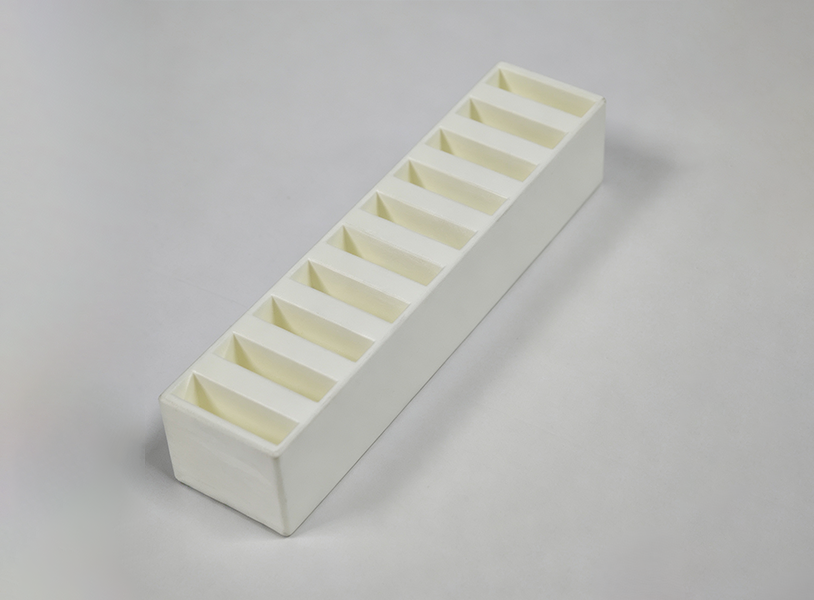

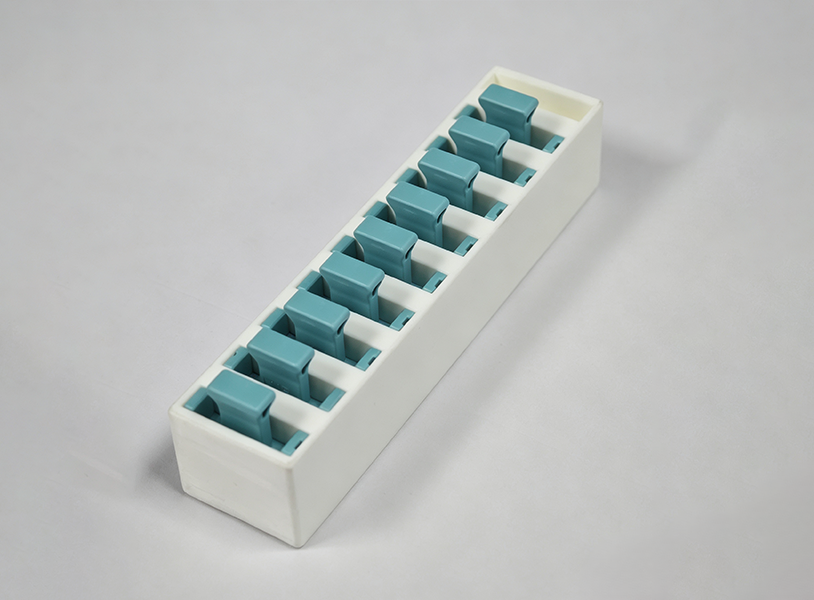

Storage Tray
Available in a variety of housing colors


Fiber Type：12F
Adaptation Pattern：SM, MM, Low Loss SM, Low Loss MM
Insertion Loss：SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB
Return Loss：SL 60dB (8°polish)/SM 60dB (8°polish)/ML 20dB (flat polish)/MM 20dB (flat polish)
Reference Standard：IEC-61754-7 and TIA-604-5-D

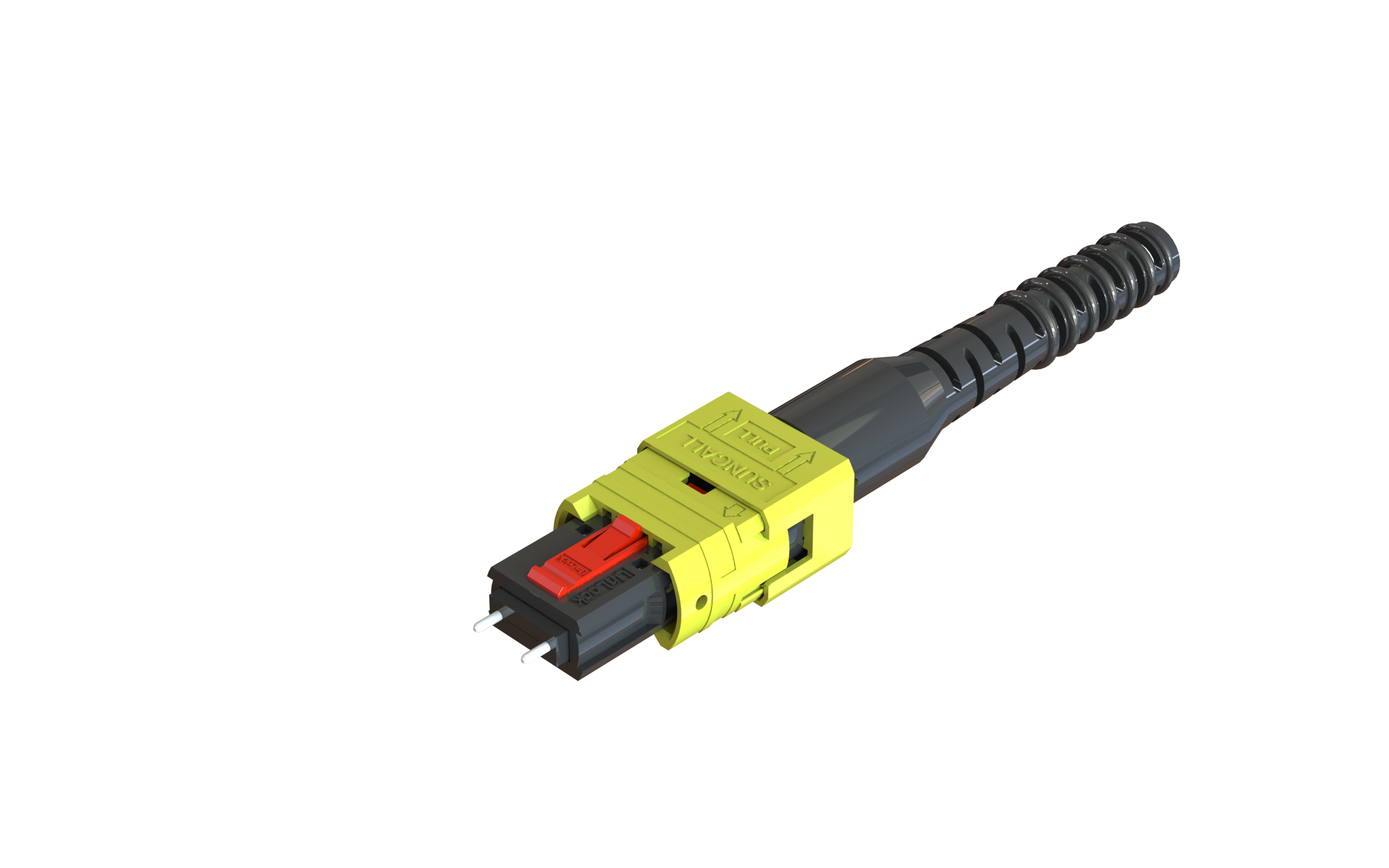

1MPO Multi-function Connector with reinforced pull boot

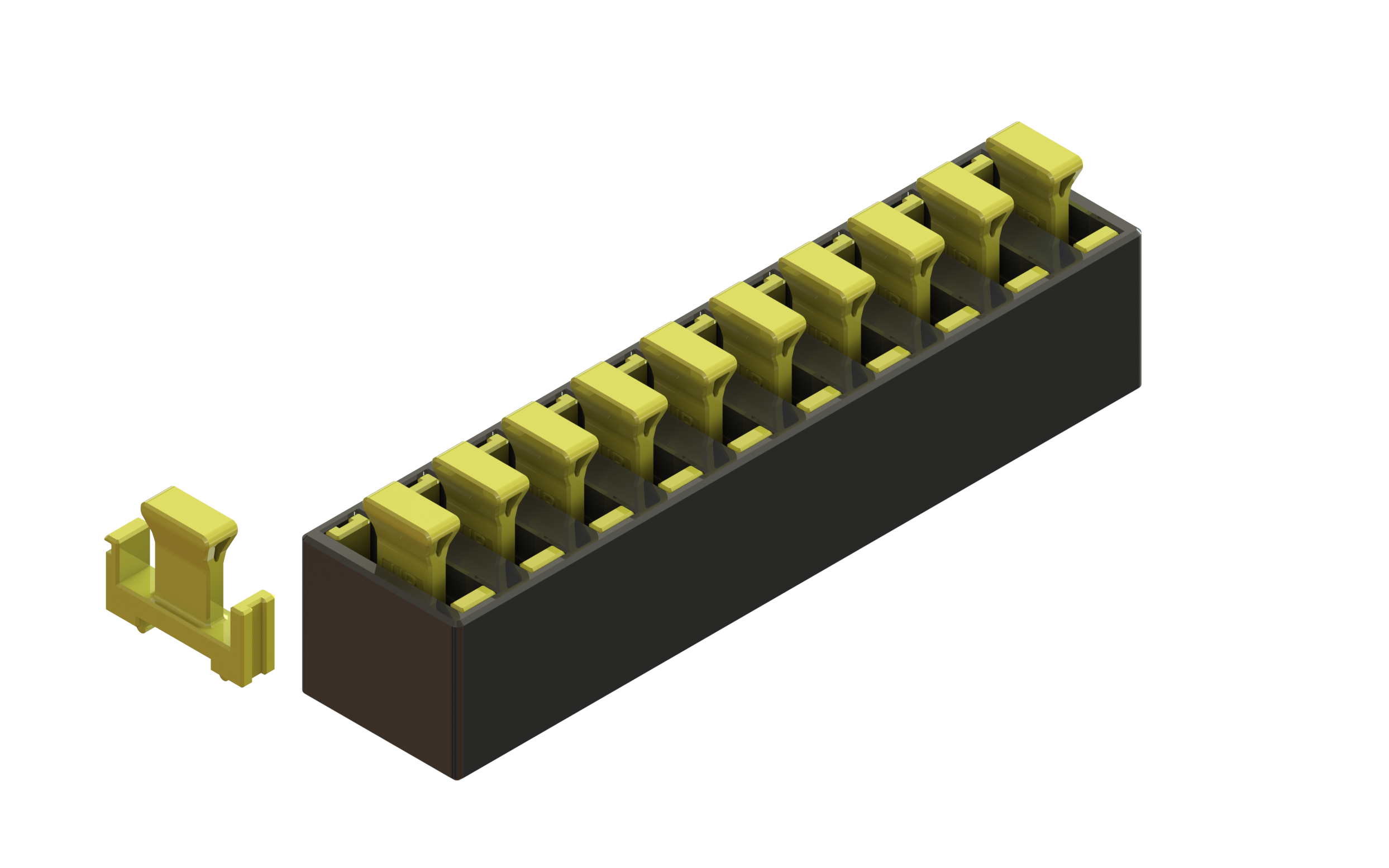

2Storage Tray

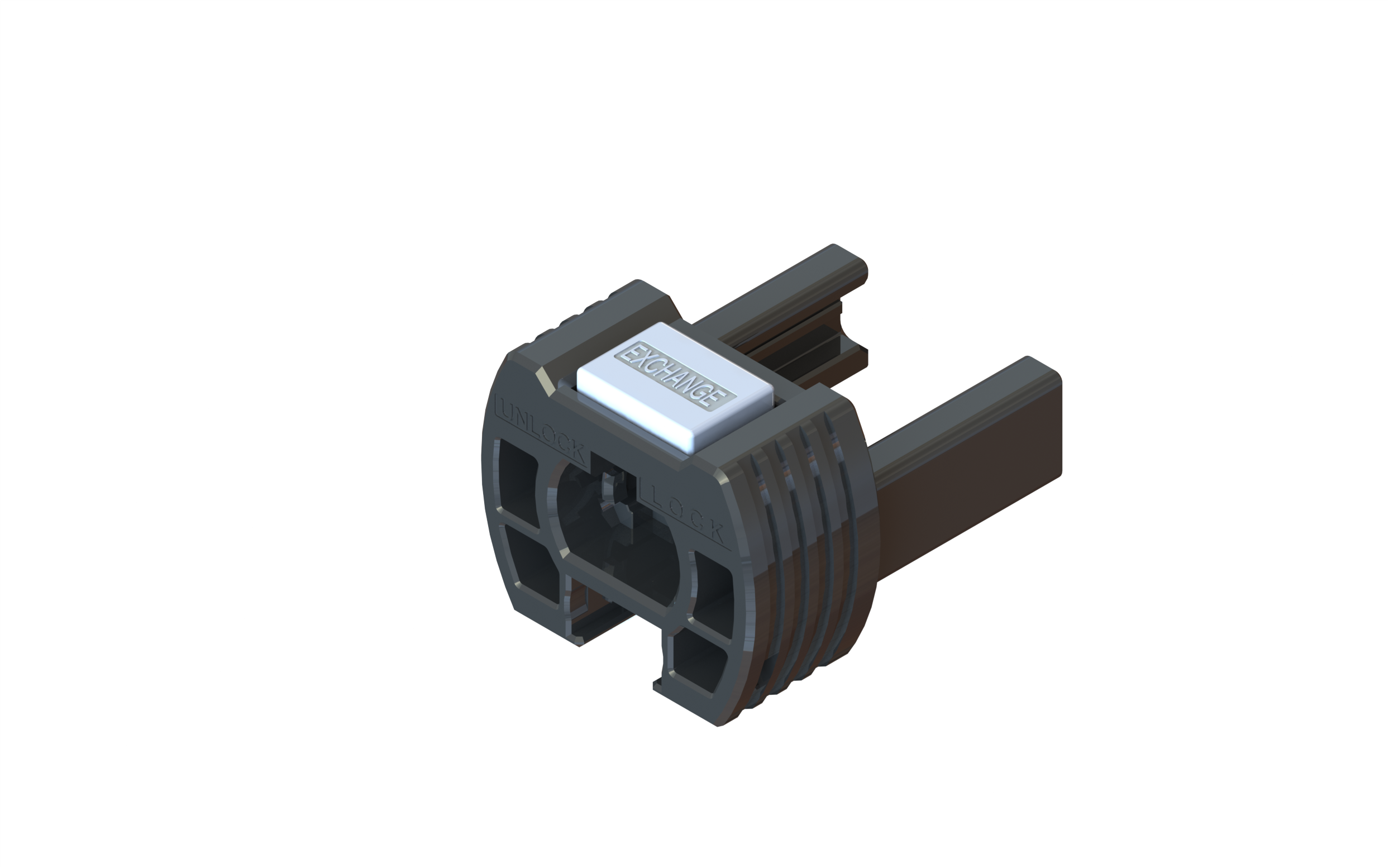

3Housing Tool

Select the product specifications here

  • 01

    Sort

Model List


SeriesProduct TypeGender Type Housing Color Ferrule Core/No Ferrule Ferrule Type Boot TypeCrimp TypeCable Spec Logo
MPOMPO SeriesPAPre AssyMMaleAQAquaW1616 CoreSMSingle ModeRDRound Standard BootOCOne Crimp20PΦ2.0mm CableLSuncall Logo




FFemaleBGBeige

SLSingle Mode Low LossRSRound Short Boot(3.0mm Only)HSHeat Shrink(2.0mm Only)30PΦ3.0mm CableNNo Logo






BKBlack

MMMulti Mode













GRGreen

MLMulti Mode Low Loss













HVHeather Violet

















LGLime Green

















YEYellow




















































  • MPO 12F Multi-Function Connector Tool

    2026.03.05
    pdf

  • MPO 12F Multi-Function Connector

    2026.03.05
    pdf

  • MPO 12F Multifunction Connector and Exchanger Tool

    2026.03.06
    pdf

  • MPO 12F Multifunction Connector and Exchanger Tool

    2026.03.06
    pdf
