MPO 16F Simplex & Duplex Internal Shutter Adapters

Only from Suncall. Based on our award-winning MPO internal shutter adapter, the new 16F Internal Shutter Adapters deliver higher fiber density for panels while providing full safety and protection. Benefits include front-of-rack use, fast VFL detection, fewer dust caps (reducing plastic waste), easy integration and quick interchangeability in SC footprint. Available in multiple key combinations and housing colors.

OTW Housing Color

BTW Housing Color

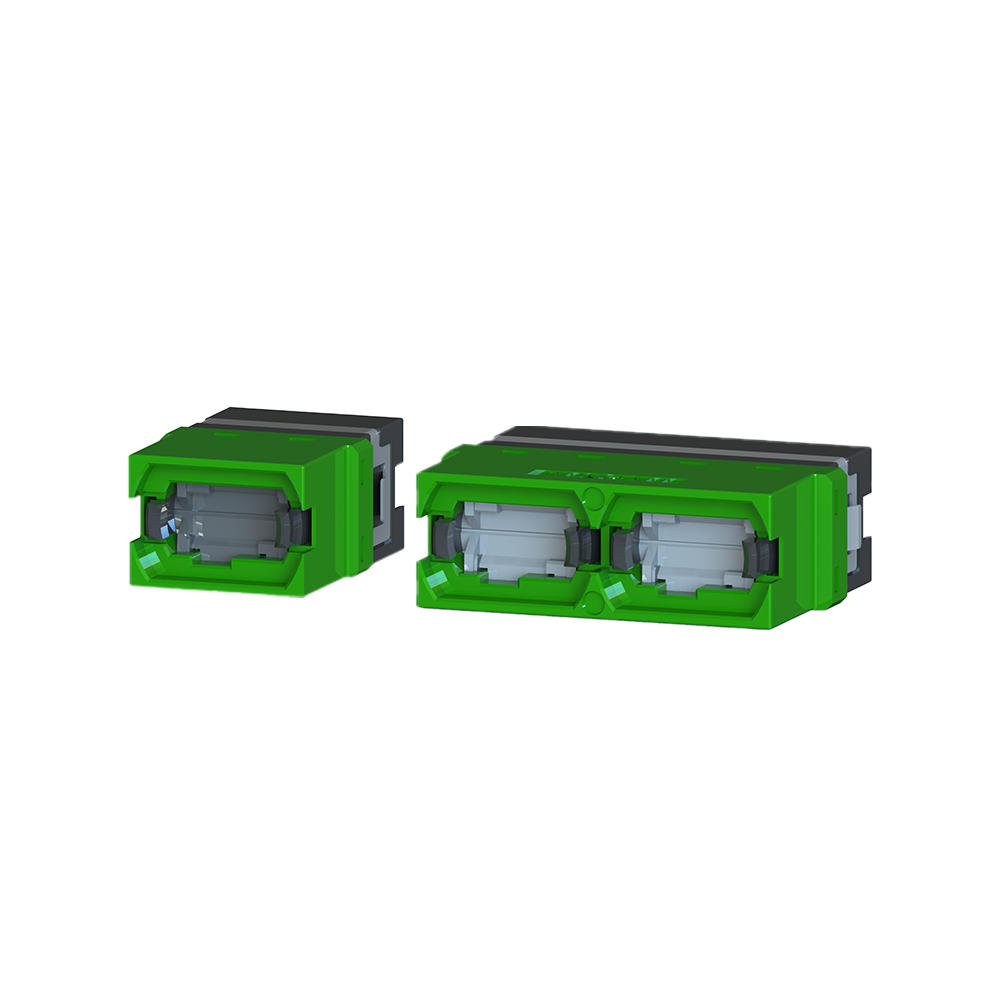

MPO 16F Simplex & Duplex Internal Shutter Adapters

Product Features

Simplex and Duplex style

Internal shutters for safety & protection

SC footprint for quick interchange with LC and SC configurations

Designed with industry standard off-center key position

Fiber type：16F、32F

Applicable mode：SM, MM, Low Loss SM, Low Loss MM

Insertion loss：SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB

Return loss：SL 60dB (8°polish)/SM 60dB (8°polish)/ML 20dB (flat polish)/ MM 20dB (flat polish)

Reference standard：IEC-61754-7-3-2019 and TIA-604-18-2015

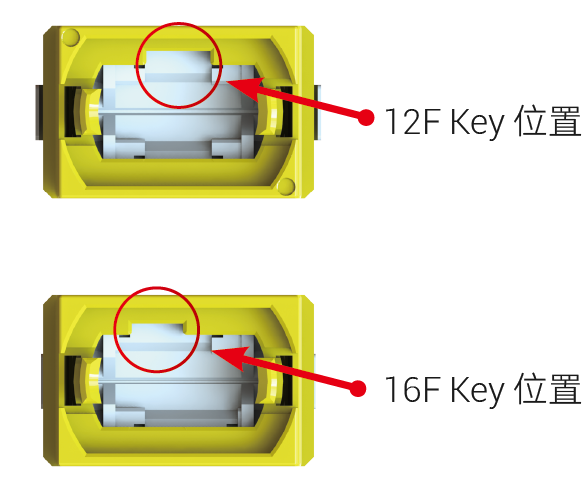

1MPO 12F+16F simplex key difference

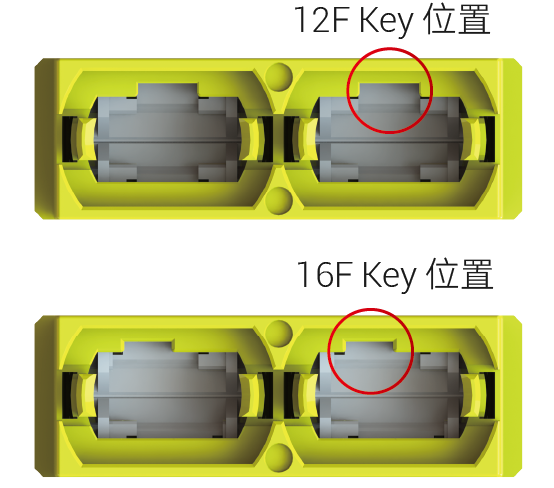

2MPO 12F+16F duplex key difference

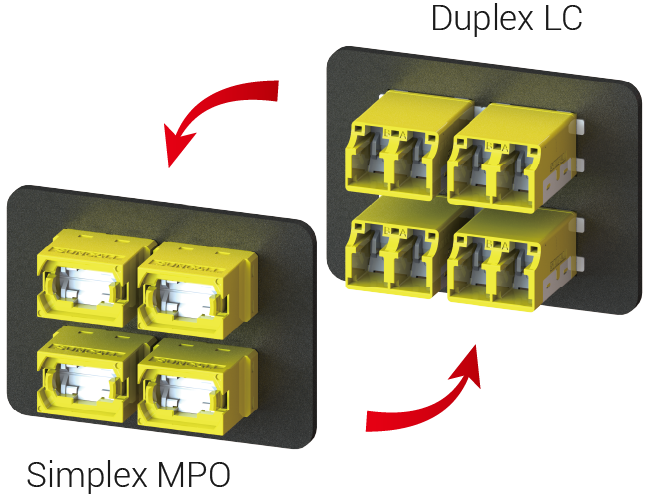

3Interchangeable from LC DX IS adapter to MPO SX IS adapter

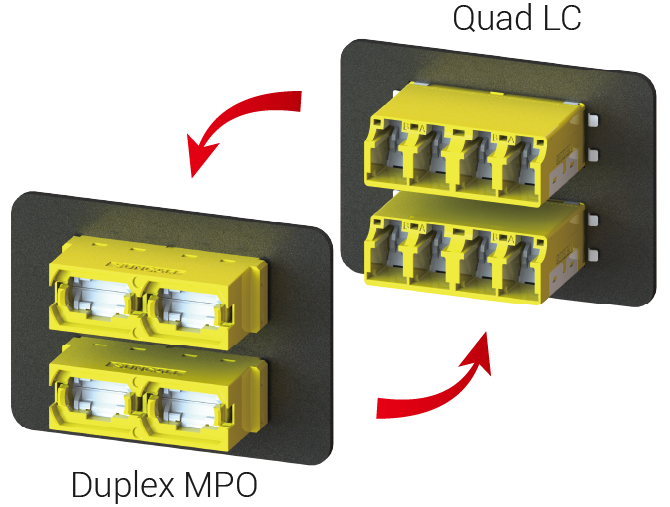

4Interchangeable from LC QD IS adapter to MPO DX IS adapter

Select the product specifications here

01

Sort

Model List

Series		Product Type		Shutter Type		Key Type		Spring Type		BTW Housing Color		OTW Housing Color		Logo
MPO	MPO Series	TC4	4 Port Adapter (12F/24F)	I	White Shutter	UU	Key Up-Key Up	W	With Spring	AQ	Aqua	AQ	Aqua	L	Suncall Logo
		TC6	6 Port Adapter (12F/24F)	T	Translucent Shutter	UD	Key Up-Key Down			BG	Beige	BG	Beige	N	No Logo
		TC4	4 Port Adapter (16F/32F)							BK	Black	BK	Black
		TC6	6 Port Adapter (16F/32F)							BL	Blue	BL	Blue
										CG	Cool Gray	CG	Cool Gray
										GR	Green	GR	Green
										YE	Yellow	YE	Yellow

MPO 16F & 32F Simplex Internal Shutter Adapter

2026.03.05

pdf
MPO 16F & 32F Duplex Internal Shutter Adapter

2026.03.05

pdf

MPO 16F Duplex Internal Shutter Adapter

2026.03.06

pdf
MPO 16F Simplex Internal Shutter Adapter

2026.03.06

pdf
