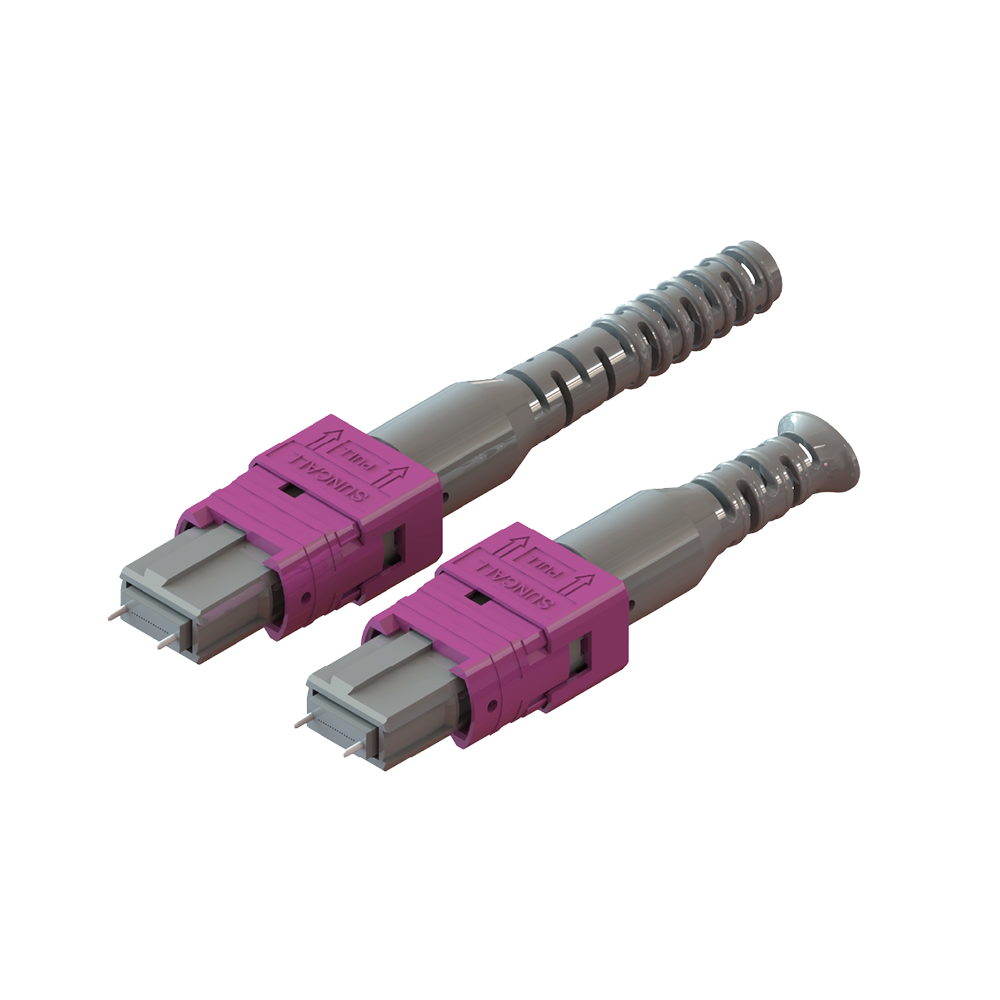

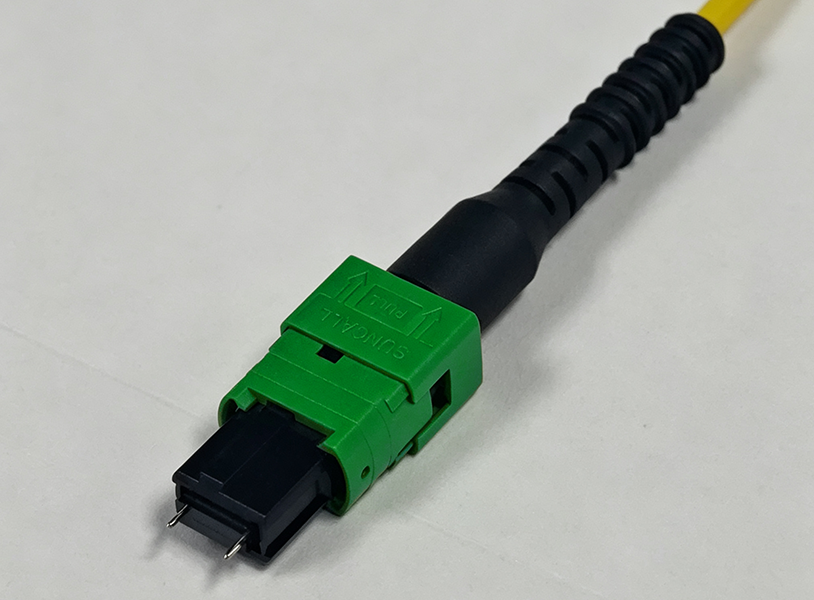

MPO 16F & 32F Pull Boot Connector

Our newly released MPO 16F & 32F Pull Boot connector extends our proven technology to a high-fiber-count option. The 16F & 32F design features a standard off-center key position and is offered in two boot styles, compatible with 2.0mm and 3.0mm cable sizes.

Housing Color

MPO 16F & 32F Pull Boot Connector

Product Features

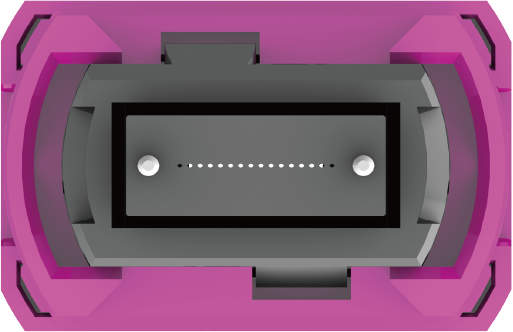

Designed with industry standard off-center key position

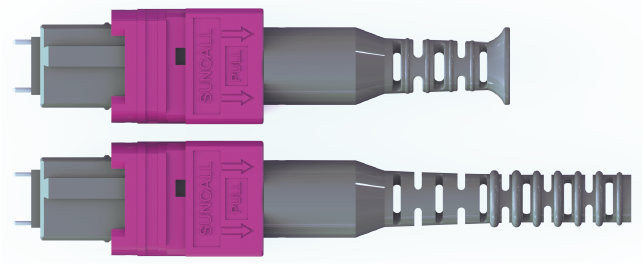

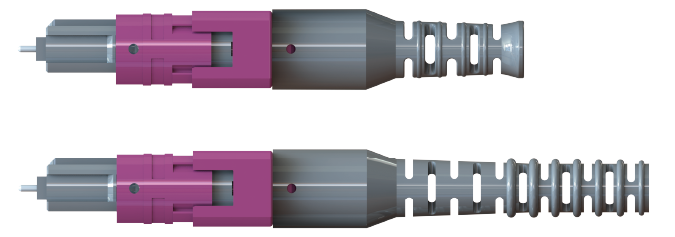

2 boot styles: Round Standard or Round Short

Available in a variety of housing colors

Fiber Type：16F、32F

Adaptation Pattern：SM, MM, Low Loss SM, Low Loss MM

Insertion Loss：SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB

Return Loss：SL 60dB (8°polish)/SM 60dB (8°polish)/ML 20dB (flat polish)/MM 20dB (flat polish)

Reference Standard：IEC-61754-7 and TlA 604-18

Select the product specifications here

01

Sort

Model List

Series		Product Type		Gender Type		Housing Color		Ferrule Core/No Ferrule		Ferrule Type		Boot Type		Crimp Type		Cable Spec		Logo
MPO	MPO Series	PA	Pre Assy	M	Male	AQ	Aqua	W16	16 Core	SM	Single Mode	RD	Round Standard Boot	OC	One Crimp	20P	Φ2.0mm Cable	L	Suncall Logo
				F	Female	BG	Beige			SL	Single Mode Low Loss	RS	Round Short Boot(3.0mm Only)	HS	Heat Shrink(2.0mm Only)	30P	Φ3.0mm Cable	N	No Logo
						BK	Black			MM	Multi Mode
						GR	Green			ML	Multi Mode Low Loss
						HV	Heather Violet
						LG	Lime Green
						YE	Yellow

MPO 16F Long Pull Boot Connector 3.0mm

2026.03.05

pdf
MPO 16F Long Pull Boot Connector 2.0mm

2026.03.05

pdf
MPO 16F Short Pull Boot Connector 2.0mm

2026.03.05

pdf
MPO 16F Short Pull Boot Connector 3.0mm

2026.03.05

pdf

MPO 16F Short Pull Boot Connector 2.0mm

2026.03.06

pdf
MPO 16F Long Pull Boot Connector 2.0mm

2026.03.06

pdf
MPO 16F Long Pull Boot Connector 3.0mm

2026.03.06

pdf
MPO 16F Short Pull Boot Connector 3.0mm

2026.03.06

pdf

MPO 16F & 32F Pull Boot Connector 2.0mm

2026.03.06
MPO 16F & 32F Pull Boot Connector 3.0mm

2026.03.06

pdf
MPO 16F & 32F Short Pull Boot Connector 2.0mm

2026.03.06

pdf
MPO 16F & 32F Short Pull Boot Connector 3.0mm

2026.03.06

pdf
