LC Pull Uniboot Connector

The new design incorporates a reinforced boot for a quick push-pull insertion and removal of the connector (no tabs needed). This new design helps conserve precious space in high-density panels and the color options assist with organization. Cable sizes available are 2.0mm and 3.0mm.

Housing Color

LC Pull Uniboot Connector

Product Features


"Just Grab It By the Boot" - a reinforced boot for fast insertion & removal
New polarity switching within boot, no tools or tabs required
Designed specifically for HD packaging
Available in a variety of colors


Fiber Type：SM（9/125），MM（50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.3dB or lower
Return Loss：UPC（55dB or more) ,APC（65dB or more）
Reference Standard：IEC61754-20 and TIA-604-10A-2002 Standard-Type LC

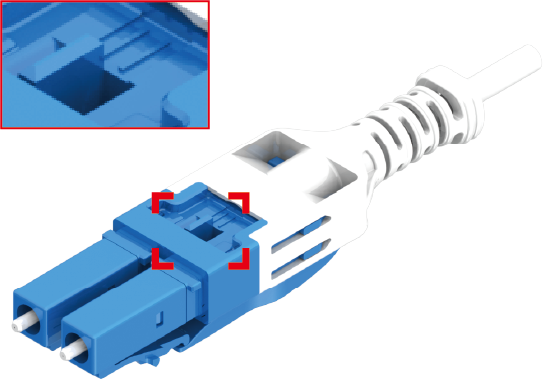

1CLICK to unlock bottom latch with finger

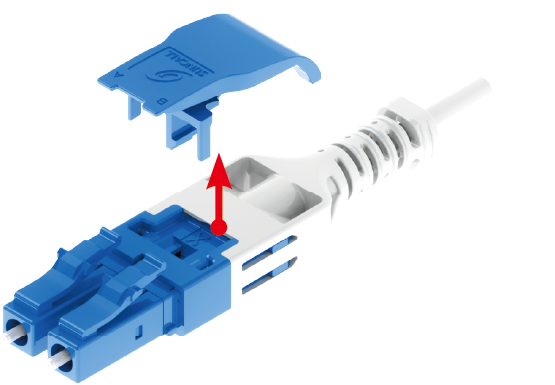

2Extract the latch from Uniboot

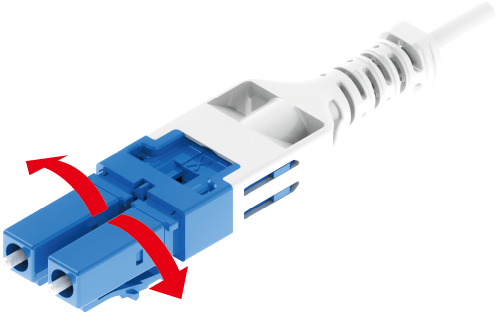

3Rotate plugs outward 180°

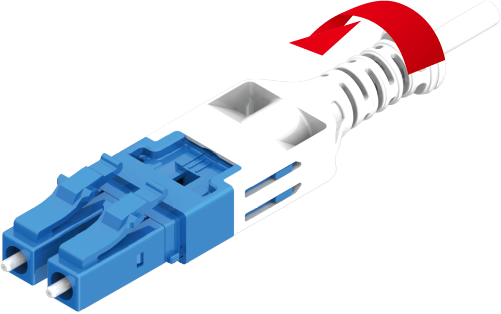

4Rotate connector body 180°
5Reinstall latch, then lock in place

Select the product specifications here

  • 01

    Sort

Model List

Body TypeModeBoot TypeProduct TypeCable SpecHousing ColorFerrule Type & IDConcentricityBoot ColorDust Cap TypeShrink Tube Type
LCLC ConnectorSSingle ModePUB Pull UnibootPPer Assy16Φ1.6mm Cable
AQAquaF50125.0um050.5umWHWhiteSSquare
Dust Cap		W
White



MMulti Mode

KKit20Φ2.0mm CableBGBeigeF55125.5um
(SM Standard)		101.0um
(Standard)

TT Dust Cap



AAPC



30Φ3.0mm Cable
BLBlueF60126.0um404.0um















GRGreen



















HVHeather
Violet



















LGLime
Green









  • LC Pull Uniboot Connector 2.0&3.0mm

    2026.03.05
    pdf

  • LC Pull Uniboot Connector 1.6mm

    2026.03.05

  • LC Pull Uniboot Connector 1.6mm

    2026.03.06
    pdf

  • LC Pull Uniboot Connector 2.0&3.0mm

    2026.03.06
    pdf

  • LC Pull Uniboot Connector 1.6mm (G657A1 Fiber)

    2026.03.06
    pdf

  • LC Pull Uniboot Connector 1.6mm (G572A2 Fiber)

    2026.03.06
    pdf

  • LC Pull Uniboot Connector 2.0mm

    2026.03.06
    pdf

  • LC Pull Uniboot Connector 3.0mm

    2026.03.06
    pdf
