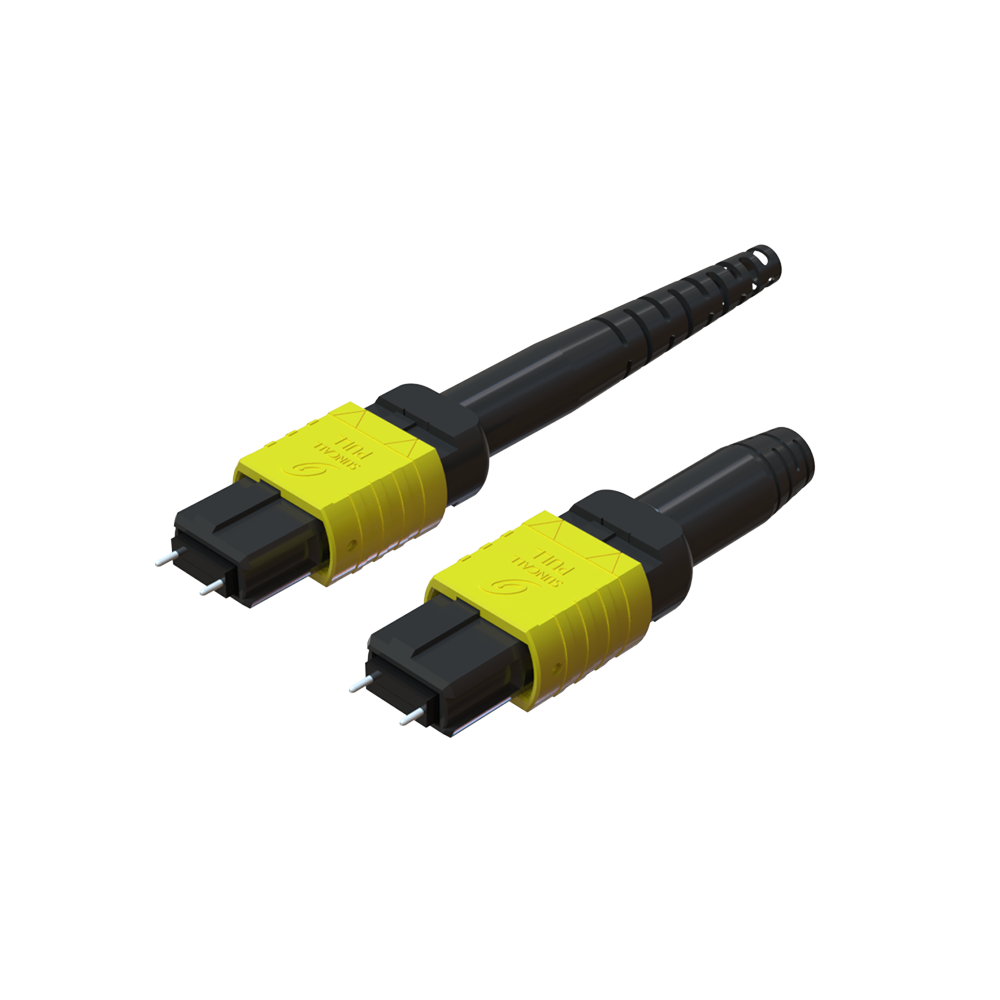

MPO 16F Connector

With the advent of the 5G era, fiber optic cable connections are essential in the deployment of 400G networks by domestic and foreign Internet companies and carriers.The MPO 16F connector, which combines a high number of cores with a compact design is considered to be the best solution to support low-latency and ultra-high-speed transmission in next-generation 400G networks.

Housing Color

MPO 16F Connector

Product Features

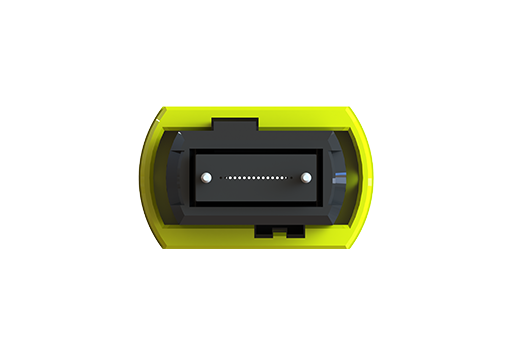

Designed with industry standard off-center key position

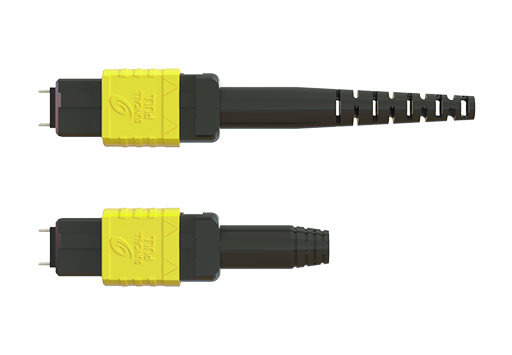

Boot Options Available：Round Standard / Round Short Boot

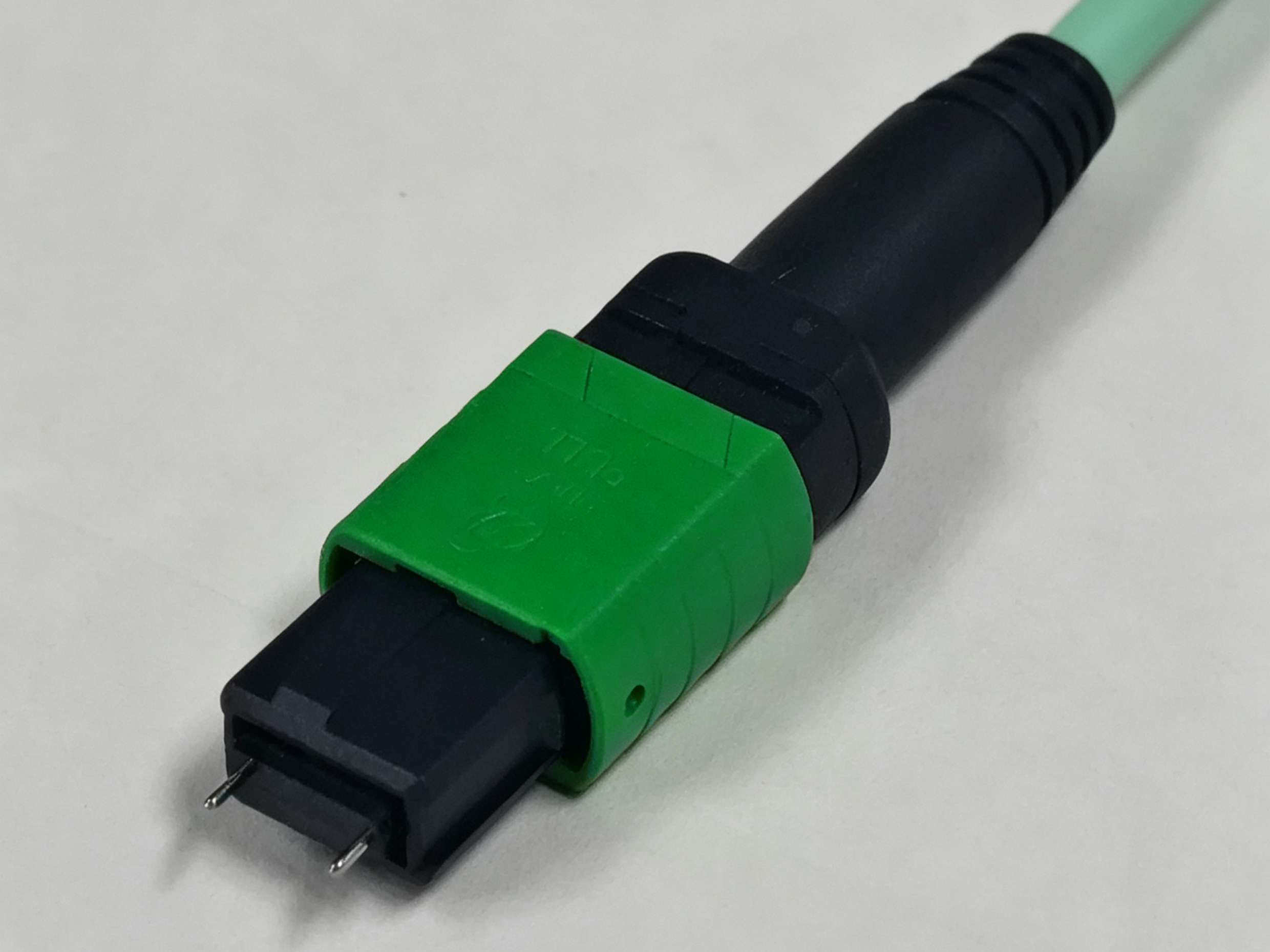

Available in a variety of housing colors

Fiber Type：16F

Adaptation Pattern：SM, MM, Low Loss SM, Low Loss MM

Insertion Loss：SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB

Return Loss：SL 60dB (8°polish)/SM 60dB (8°polish)/ML 20dB (flat polish)/MM 20dB (flat polish)

Reference Standard：IEC-61754-7-3

Select the product specifications here

01

Sort

Model List

Series		Product Type		Gender Type		Housing Color		Ferrule Core/No Ferrule		Ferrule Type		Boot Type		Crimp Type		Cable Spec		Logo
MPO	MPO Series	PA	Pre Assy	M	Male	AQ	Aqua	W16	16 Core	SM	Single Mode	RD	Round Standard Boot	OC	One Crimp	20P	Φ2.0mm Cable	L	Suncall Logo
				F	Female	BG	Beige			SL	Single Mode Low Loss	RS	Round Short Boot(3.0mm Only)	HS	Heat Shrink(2.0mm Only)	30P	Φ3.0mm Cable	N	No Logo
						BK	Black			MM	Multi Mode
						GR	Green			ML	Multi Mode Low Loss
						HV	Heather Violet
						LG	Lime Green
						YE	Yellow

MPO 16F Connector V1.4

2026.06.11

pdf
MPO 16F Connector V1.2（Long Boot）

2026.06.11

pdf
MPO 16F Connector V1.2（Short Boot）

2026.06.11

pdf

MPO 16F Connector 3.0mm

2026.06.11

pdf

MPO 16F Connector 3.0mm V1.1

2026.06.11

pdf
MPO 16F Connector 3.5mm V1.2

2026.06.11

pdf
MPO 16F Connector 3.5mm V1.0（Short Boot）

2026.06.11

pdf
MPO 16F Connector 3.5mm V1.0

2026.06.11

pdf
